Introduction to Through type high-temperature quenching heat treatment furnace, introduction to heating furnace advantages and characteristics

Through type high-temperature quenching heat treatment furnaceIt is a kind of equipment that uses natural gas as fuel to heat metal materials and make them reach forging temperature.。The following is to introduce the Through type high-temperature quenching heat treatment furnace:

1、Brief introduction of Through type high-temperature quenching heat treatment furnace

Through type high-temperature quenching heat treatment furnaceIt is a kind of heating equipment using natural gas as fuel, which is mainly used to heat metal materials to the required forging temperature in a short time.，It can improve the plasticity and fluidity of metal materials, reduce the difficulty and cost of forging, and improve product quality and production efficiency.、The metal material can be heated to the required temperature in a short time, and the production efficiency is improved.、It can improve the plasticity and fluidity of metal materials, reduce the difficulty and cost of forging, and improve product quality and production efficiency.、Using regenerative combustion system or advanced burner design can realize the uniform distribution of temperature in the furnace, ensure the uniform heating of metal materials and improve product quality.、Usually equipped with intelligent control system, it can automatically adjust the parameters such as gas supply and air flow according to the heating demand, and realize accurate control of the temperature and atmosphere in the furnace.，multifunctional, with functions such as normalizing, temper, hardening and tempering, heat treatment and quench，it is an ideal choice for customers to buy Through type high-temperature quenching heat treatment furnace。

Through type high-temperature quenching heat treatment furnace

2、Functional advantages of Through type high-temperature quenching heat treatment furnace

The advantages of Through type high-temperature quenching heat treatment furnace are as follows:

1. Intelligent control

The Through type high-temperature quenching heat treatment furnace is usually equipped with an intelligent control system, which can automatically adjust the parameters such as gas supply and air flow according to the heating demand, and realize accurate control of the temperature and atmosphere in the furnace.

2. clean energy

Natural gas, as a clean energy source, produces less waste gas and dust after combustion, which has little pollution to the environment. This will help reduce industrial emissions and improve the atmospheric environment.

3. Improve product quality

Because the Through type high-temperature quenching heat treatment furnace can realize uniform heating and precise control, it is helpful to improve the product quality and yield of metal materials.

4. Multiple fuel options

Although the Through type high-temperature quenching heat treatment furnace mainly uses natural gas as fuel, some equipment also supports other types of gas or liquid fuel, which has strong fuel adaptability.

5. Extend the service life of equipment

The Through type high-temperature quenching heat treatment furnace adopts advanced combustion technology and materials, which has a long service life and low maintenance cost.

Through type high-temperature quenching heat treatment furnace

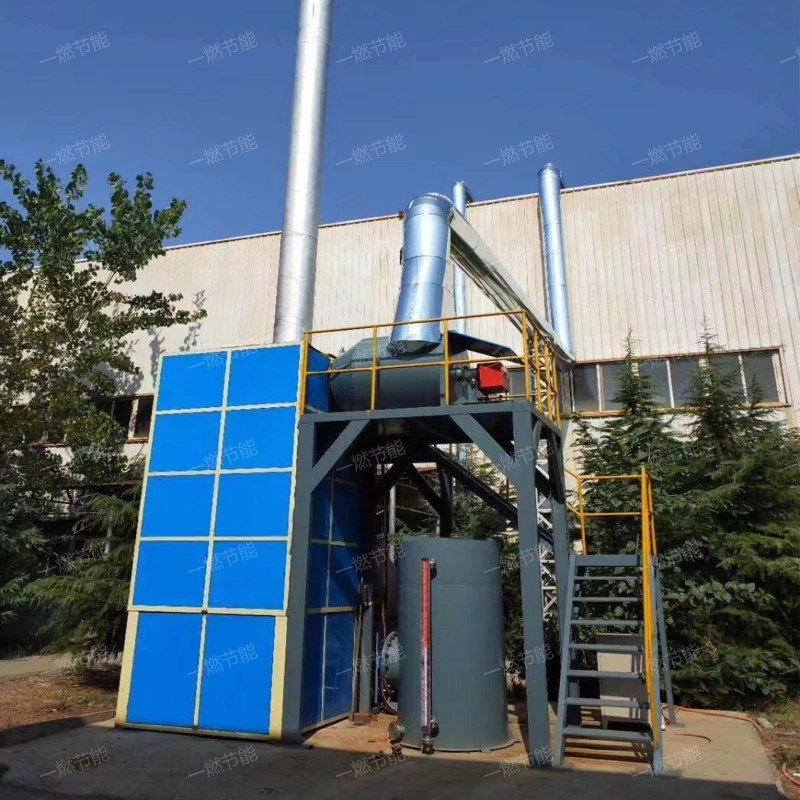

3、On-site real shot of Through type high-temperature quenching heat treatment furnace

The Through type high-temperature quenching heat treatment furnace is designed by One-combustion energy saving with advanced technology, and the product has high performance advantages. In order to facilitate our customers to find a satisfactory heating furnace more quickly, the following high-definition pictures are provided for reference.。

Through type high-temperature quenching heat treatment furnace

Note: All the pictures in this article were taken by One-combustion energy saving manufacturer.。

4、Structural characteristics of Through type high-temperature quenching heat treatment furnace

The Through type high-temperature quenching heat treatment furnace structure is introduced as follows:

1. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

2. furnace chamber

A space for holding metallic materials for heating.

3. Waste heat recovery system

Used to recover the exhaust heat of the heating furnace. There are two kinds of recovery methods, one is to recover by preheating combustion air, so that the recovered heat can return to the furnace again; The other is to use another recovery system to recover heat. The former is called air preheating mode, and the latter is usually called waste heat boiler mode.

4. convection chamber

The material is heated by convection heat transfer of high temperature flue gas discharged from the radiation chamber. Flue gas washes the tube wall of the furnace tube at a high speed to carry out effective convection heat transfer, and its heat load accounts for about 20%-30% of the whole furnace. The convection chamber is generally arranged above the radiation chamber, and some are placed on the ground alone. In order to improve the heat transfer effect, nail head tubes or finned tubes are often used in furnace tubes.

5. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

Through type high-temperature quenching heat treatment furnace

5、Through type high-temperature quenching heat treatment furnace use

The purpose of Through type high-temperature quenching heat treatment furnace is introduced as follows:

1. Energy conservation and environmental protection

The Through type high-temperature quenching heat treatment furnace uses clean energy as fuel, which has lower emissions and higher energy efficiency than traditional coal-fired or oil-fired stoves. This is helpful to reduce environmental pollution and realize green production.

2. Metal forging heating

The Through type high-temperature quenching heat treatment furnace can heat the metal material to the temperature required for forging, improve its plasticity and fluidity, and thus facilitate forging. This is very important for the forging of various metal materials.

3. Metal tempering

By properly heating and cooling the metal material, the Through type high-temperature quenching heat treatment furnace can realize the quenching and tempering treatment of the metal. This is helpful to adjust the hardness and toughness of metal to meet the needs of different workpieces.

4. Metal heat treatment

In addition to forging heating, Through type high-temperature quenching heat treatment furnaces can also be used for metal heat treatment processes, such as annealing and tempering. These processes can improve the microstructure and properties of metal materials, and improve their service life and mechanical properties.

5. Improve production efficiency

The Through type high-temperature quenching heat treatment furnace has the advantages of fast heating speed and accurate temperature control, which can improve production efficiency. This is especially important for mass-produced forging workshops.

Through type high-temperature quenching heat treatment furnace

6、Brief introduction of Through type high-temperature quenching heat treatment furnace

Through type high-temperature quenching heat treatment furnaceIt is a kind of equipment that uses natural gas as fuel to heat metal materials and make them reach forging temperature.，it mainly includes ventilation system, Radiation chamber, combustor, furnace chamber and convection chamber，This productThe overall structural design is simple and novel.。

Through type high-temperature quenching heat treatment furnace

Through type high-temperature quenching heat treatment furnaceIt is a kind of equipment which uses gas as fuel and is specially used for heating metal before forging.，features include Strong adaptability, Easy to maintain, Stable and reliable, energy saving and environmental protection and energy-efficient，Strong adaptability,energy-efficient,Easy to control,Easy to maintain,Stable and reliable。
