What is a Double door annealing trolley forging furnace? Introduction to the principle of forging furnace structure

Double door annealing trolley forging furnaceIt is an efficient, energy-saving and environment-friendly metal heating device.，be loved by our customers.。The following is to introduce the Double door annealing trolley forging furnace:

1、Brief introduction of Double door annealing trolley forging furnace

Double door annealing trolley forging furnaceIt is a kind of equipment that uses natural gas as fuel to heat metal materials and make them reach forging temperature.，is a Double door annealing trolley forging furnace，The structural design is simple, novel and special.，it has the structure of furnace chamber, Radiation chamber, recovery of waste heat, combustor and ventilation system，usually used in aerospace, surface treatment, light industry, shipping, automobile and other fields，is a kind of high quality and low price Double door annealing trolley forging furnace。

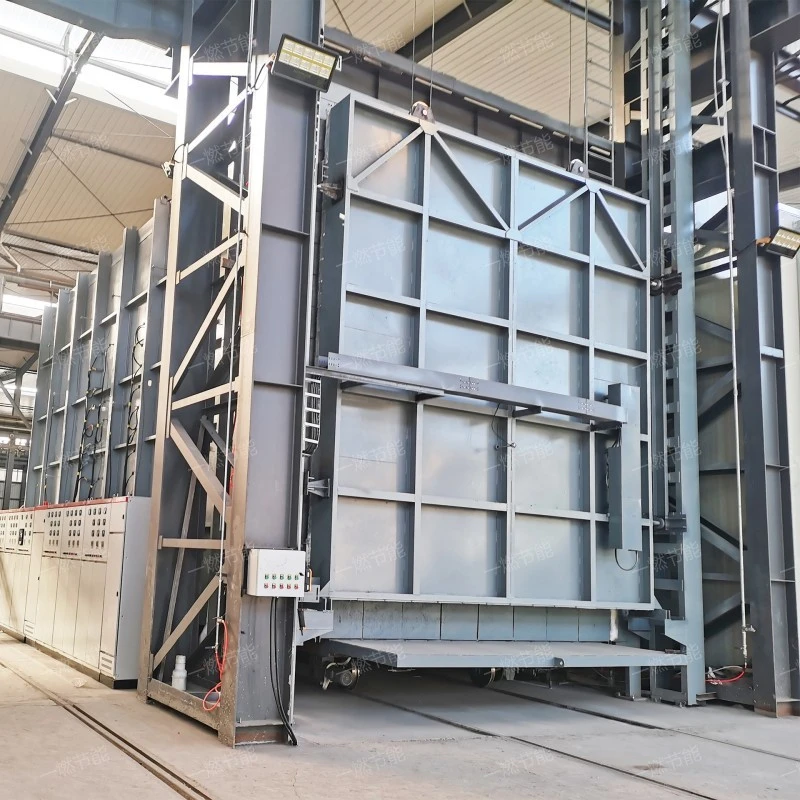

Double door annealing trolley forging furnace

2、Double door annealing trolley forging furnace characteristics

The Double door annealing trolley forging furnace features are as follows:

1. Strong adaptability

The Double door annealing trolley forging furnace can be used for forging and heating of bar, round steel, square steel, steel plate and other metal materials, and has a wide range of applications.

2. Stable and reliable

The Double door annealing trolley forging furnace has a stable combustion system and temperature control system, which can ensure the uniformity and stability of the temperature in the furnace, thus improving the quality and production efficiency of forged products.

3. Efficient heating

The Double door annealing trolley forging furnace can heat the metal to the required forging temperature in a very short time, reducing the loss caused by the oxidation of the metal.

4. Easy to maintain

The structural design of the Double door annealing trolley forging furnace is reasonable and easy to maintain, which reduces the operating cost and failure rate of the equipment.

5. energy saving and environmental protection

As a clean energy source, natural gas produces less pollutants after combustion, which is beneficial to environmental protection. At the same time, the application of waste heat recovery system further improves the energy utilization efficiency.

Double door annealing trolley forging furnace

3、Double door annealing trolley forging furnace structure composition

The Double door annealing trolley forging furnace has the following structure

1. Radiation chamber

The heat load of the main place for Double door annealing trolley forging furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

2. furnace chamber

A space for holding metallic materials for heating.

3. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

4. Waste heat recovery system

Recover the waste heat in the exhaust gas of heating furnace to improve the energy utilization efficiency.

5. convection chamber

The high-temperature flue gas discharged from the radiation chamber is used for convective heat transfer to further heat the metal materials.

Double door annealing trolley forging furnace

4、Double door annealing trolley forging furnace structure

The Double door annealing trolley forging furnace structure is introduced as follows:

1. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

2. Radiation chamber

The heat load of the main place for Double door annealing trolley forging furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

3. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

4. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

5. Waste heat recovery system

Used to recover the exhaust heat of the heating furnace. There are two kinds of recovery methods, one is to recover by preheating combustion air, so that the recovered heat can return to the furnace again; The other is to use another recovery system to recover heat. The former is called air preheating mode, and the latter is usually called waste heat boiler mode.

Double door annealing trolley forging furnace

5、Double door annealing trolley forging furnace application

Double door annealing trolley forging furnaces have the following purposes.

1. Metal melting and casting

Although it is mainly used for forging heating, some types of Double door annealing trolley forging furnaces can also be used in metal melting and casting processes. This is especially suitable for melting and casting of small or special alloys.

2. Metal forging heating

The Double door annealing trolley forging furnace can heat the metal material to the temperature required for forging, improve its plasticity and fluidity, and thus facilitate forging. This is very important for the forging of various metal materials.

3. Metal heat treatment

In addition to forging heating, Double door annealing trolley forging furnaces can also be used for metal heat treatment processes, such as annealing and tempering. These processes can improve the microstructure and properties of metal materials, and improve their service life and mechanical properties.

4. Metal tempering

By properly heating and cooling the metal material, the Double door annealing trolley forging furnace can realize the quenching and tempering treatment of the metal. This is helpful to adjust the hardness and toughness of metal to meet the needs of different workpieces.

5. Improve production efficiency

The Double door annealing trolley forging furnace has the advantages of fast heating speed and accurate temperature control, which can improve production efficiency. This is especially important for mass-produced forging workshops.

Double door annealing trolley forging furnace

6、Functional advantages of Double door annealing trolley forging furnace

Double door annealing trolley forging furnaces have the following advantages.

1. Multiple fuel options

Although the Double door annealing trolley forging furnace mainly uses natural gas as fuel, some equipment also supports other types of gas or liquid fuel, which has strong fuel adaptability.

2. Rapid temperature rise

The Double door annealing trolley forging furnace can heat the metal material to the required temperature in a short time, which improves the production efficiency.

3. Wide application range

The Double door annealing trolley forging furnace is suitable for forging and heating of various metal materials, including steel, aluminum and copper. At the same time, it can also be used in metal heat treatment, tempering and other technological processes.

4. Extend the service life of equipment

The Double door annealing trolley forging furnace adopts advanced combustion technology and materials, which has a long service life and low maintenance cost.

5. Intelligent control

The Double door annealing trolley forging furnace is usually equipped with an intelligent control system, which can automatically adjust the parameters such as gas supply and air flow according to the heating demand, and realize accurate control of the temperature and atmosphere in the furnace.

Double door annealing trolley forging furnace

Double door annealing trolley forging furnacethe product looks atmospheric.，features include Easy to control, Stable and reliable, Easy to maintain, energy-efficient and energy saving and environmental protection，It is a kind of equipment which uses gas as fuel and is specially used for heating metal before forging.。
