What is a Chain track quenching furnace? How much is the price of the heating furnace?

Chain track quenching furnaceIt is a kind of equipment which uses gas as fuel and is specially used for heating metal before forging.，Natural gas is used as a heat source, resulting in less waste gas and smoke after combustion, and less pollution to the environment. This will help reduce industrial emissions and improve the atmospheric environment.、Suitable for forging and heating of various metal materials, including steel, aluminum and copper. At the same time, it can also be used in metal heat treatment, tempering and other technological processes.、Uniform heating and precise control can be realized, so it is helpful to improve the product quality and yield of metal materials.、Adopting advanced combustion technology and materials, it has a long service life and low maintenance cost.、It can improve the plasticity and fluidity of metal materials, reduce the difficulty and cost of forging, and improve product quality and production efficiency.，multifunctional, with functions such as normalizing, heat treatment, Casting heating, Forging heating and hardening and tempering，usually used in material, petroleum, chemical industry, shipping, war industry and other fields，at work,Heat of combustion based on fuel. Natural gas is sprayed from the burner, mixed with combustion-supporting air and burned to produce high-temperature flame and smoke. These high-temperature flames and smoke transfer heat to the metal materials in the furnace by radiation and convection, so that they gradually heat up to the temperature required for forging.。

1、Brief introduction of Chain track quenching furnace

Chain track quenching furnaceIt is a kind of heating equipment using natural gas as fuel, which is mainly used to heat metal materials to the required forging temperature in a short time.，be loved by our customers.。

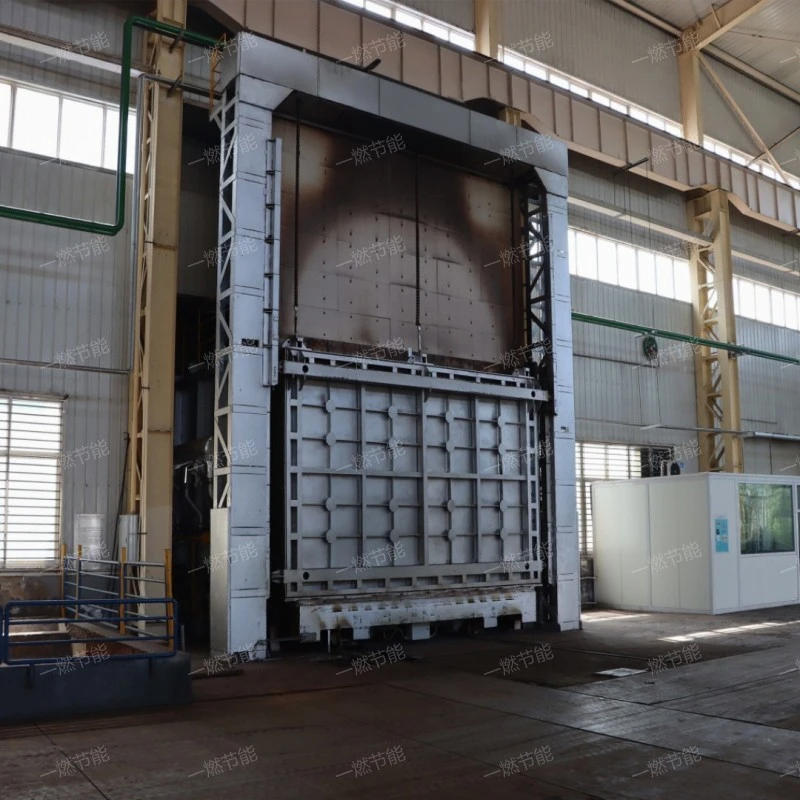

Chain track quenching furnace

2、Chain track quenching furnace structure composition

The Chain track quenching furnace has the following structure

1. Radiation chamber

The heat load of the main place for Chain track quenching furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

2. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

3. Waste heat recovery system

Used to recover the exhaust heat of the heating furnace. There are two kinds of recovery methods, one is to recover by preheating combustion air, so that the recovered heat can return to the furnace again; The other is to use another recovery system to recover heat. The former is called air preheating mode, and the latter is usually called waste heat boiler mode.

4. convection chamber

The material is heated by convection heat transfer of high temperature flue gas discharged from the radiation chamber. Flue gas washes the tube wall of the furnace tube at a high speed to carry out effective convection heat transfer, and its heat load accounts for about 20%-30% of the whole furnace. The convection chamber is generally arranged above the radiation chamber, and some are placed on the ground alone. In order to improve the heat transfer effect, nail head tubes or finned tubes are often used in furnace tubes.

5. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

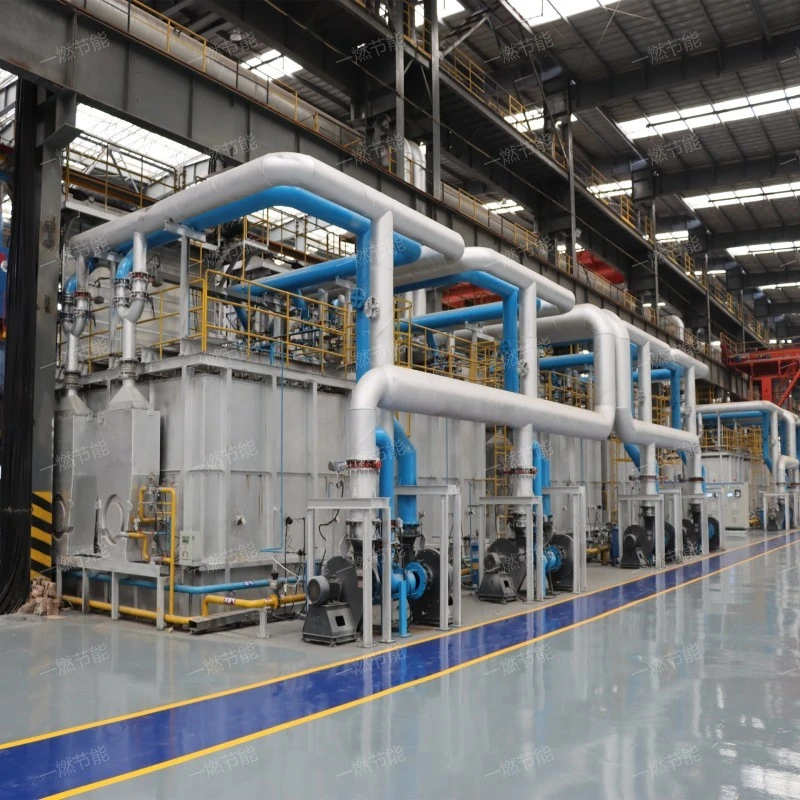

Chain track quenching furnace

3、Chain track quenching furnace performance advantage

The advantages of Chain track quenching furnace are as follows:

1. Extend the service life of equipment

The Chain track quenching furnace adopts advanced combustion technology and materials, which has a long service life and low maintenance cost.

2. Wide application range

The Chain track quenching furnace is suitable for forging and heating of various metal materials, including steel, aluminum and copper. At the same time, it can also be used in metal heat treatment, tempering and other technological processes.

3. Reduce operating costs

The efficient combustion and waste heat recovery system of the Chain track quenching furnace can significantly reduce energy consumption, thus reducing operating costs.

4. clean energy

Natural gas, as a clean energy source, produces less waste gas and dust after combustion, which has little pollution to the environment. This will help reduce industrial emissions and improve the atmospheric environment.

5. Rapid temperature rise

The Chain track quenching furnace can heat the metal material to the required temperature in a short time, which improves the production efficiency.

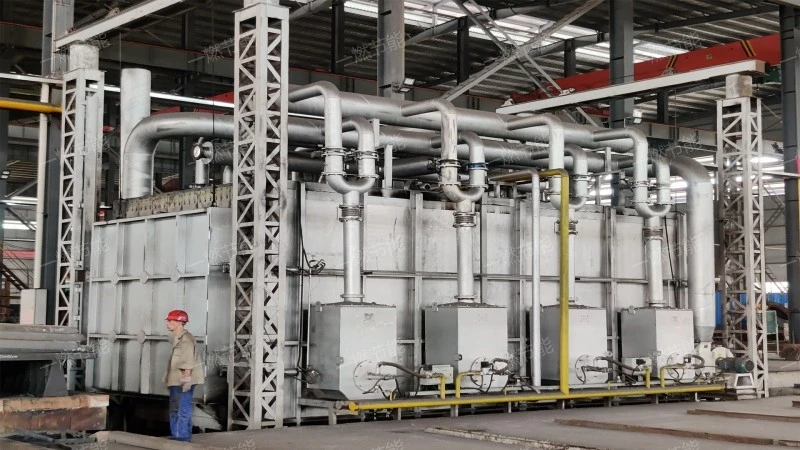

Chain track quenching furnace

4、Chain track quenching furnace function

Chain track quenching furnaceit has the functions of temper, quench, anneal, normalizing and quench，It can be used for Improve production efficiency, Metal tempering, Improve production efficiency, Metal melting and casting, Metal forging heating, Metal heat treatment and so on，It is a kind of equipment that uses natural gas as fuel to heat metal materials and make them reach forging temperature.，Structure consists of ventilation system, recovery of waste heat, ventilation system, combustor, convection chamber and so on，the product looks beautiful.。

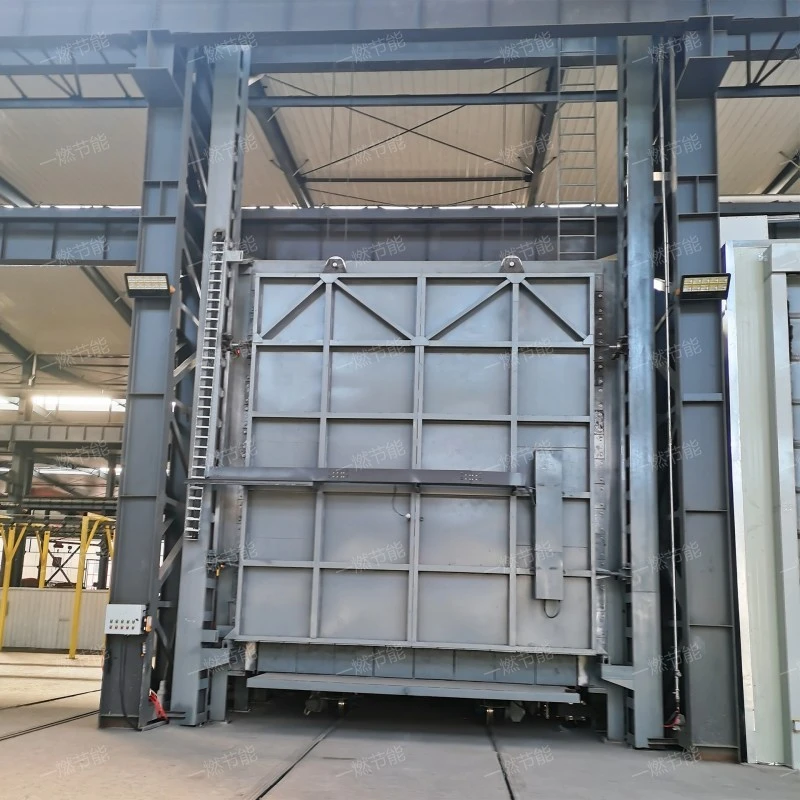

Chain track quenching furnace

5、Chain track quenching furnace principle

Chain track quenching furnaceat runtime,The high-temperature flame and flue gas generated when the fuel burns in the furnace are used as heat sources to heat the medium flowing in the tube to reach the specified process temperature. Fuel is ejected from the burner and burned, resulting in high-temperature flame and high-temperature flue gas. The high-temperature flame transfers heat to the furnace tube in the radiation chamber through radiation, and then to the medium in the furnace tube. The high-temperature flue gas enters the convection chamber of the heating furnace upward due to the suction force of the chimney or the action of the induced draft fan, and the heat is transferred to the furnace tube in the convection chamber by convection, and then to the medium in the furnace tube.。

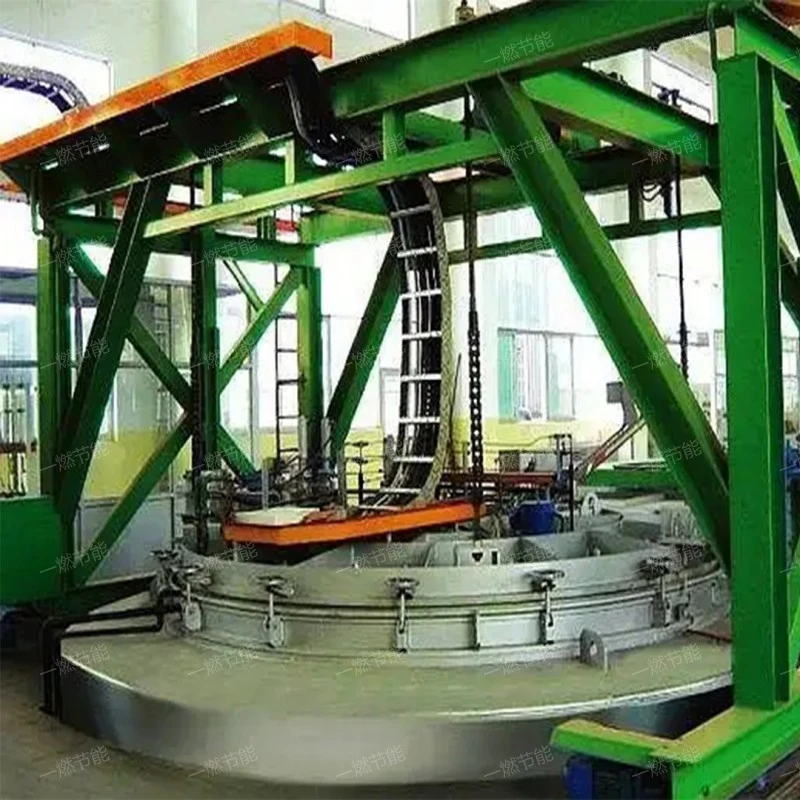

Chain track quenching furnace

Chain track quenching furnacemultifunctional, with functions such as hardening and tempering, anneal, temper, heat treatment and Casting heating，widely used in electron, machinery, heat treatment, Household necessities, surface treatment and other fields。
