Protective gas trolley heating furnace detailed introduction

Protective gas trolley heating furnaceIt is an important heating equipment before metal forging. It uses natural gas as fuel to heat metal materials through high-temperature flame and smoke generated by combustion to meet the requirements of forging process.，features include Easy to control, Easy to maintain, energy-efficient, energy saving and environmental protection and Strong adaptability，is developed and improved by One-combustion energy saving。

1、Brief introduction of Protective gas trolley heating furnace

Protective gas trolley heating furnaceIt is an efficient, energy-saving and environment-friendly metal heating device.，can be customized according to user's needs.。

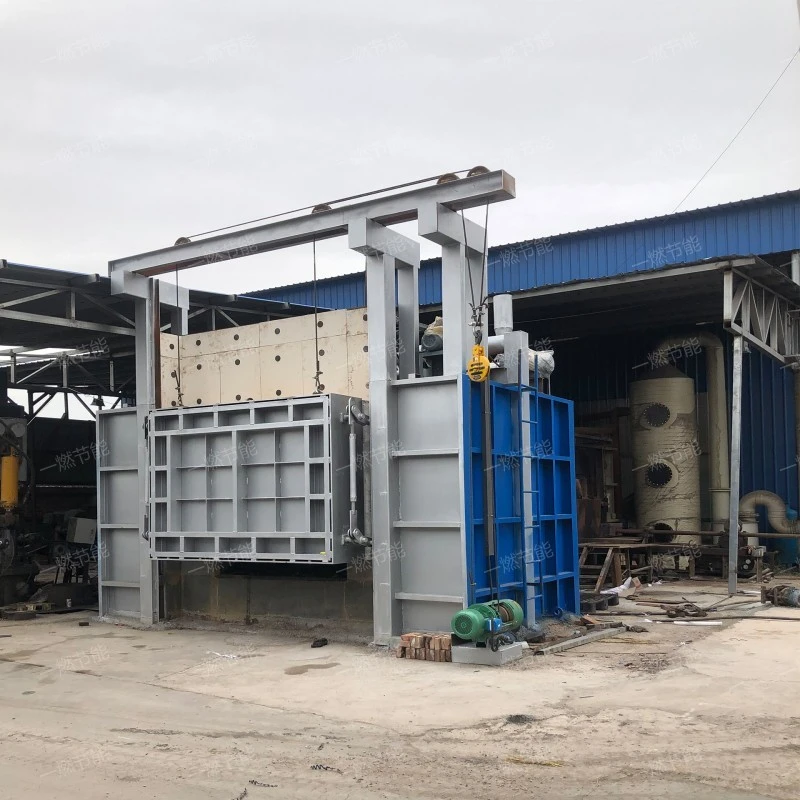

Protective gas trolley heating furnace

2、Introduction of Protective gas trolley heating furnace characteristics

Protective gas trolley heating furnace has the following characteristics

1. Easy to maintain

The structural design of the Protective gas trolley heating furnace is reasonable and easy to maintain, which reduces the operating cost and failure rate of the equipment.

2. Strong adaptability

The Protective gas trolley heating furnace can be used for forging and heating of bar, round steel, square steel, steel plate and other metal materials, and has a wide range of applications.

3. energy saving and environmental protection

Natural gas is a kind of clean energy, which produces less waste gas and waste smoke after combustion and has little environmental pollution. At the same time, through wall regenerative combustion technology, flue gas waste heat recovery system and other technical means, the Protective gas trolley heating furnace further improves energy utilization efficiency and reduces energy consumption and emissions.

4. Efficient heating

The Protective gas trolley heating furnace can heat the metal material to the required temperature in a short time and improve the production efficiency.

5. Easy to maintain

The structural design of the Protective gas trolley heating furnace is reasonable and easy to maintain, which reduces the operating cost and failure rate of the equipment.

Protective gas trolley heating furnace

3、Protective gas trolley heating furnace explanation video

One-combustion energy saving provides customers with on-site high-definition video, fully demonstrates the advantages of on-site productt operation, and helps customers to deeply understand the Protective gas trolley heating furnace production process and production site, and gain favorable comments and recognition from customers.。

Protective gas trolley heating furnace

As you can see from the live video.，Shandong yiran energy-saving environment protection co., ltd The structure is novel, special, advanced, reasonable and scientific.，it mainly includes ventilation system, Radiation chamber, recovery of waste heat, furnace chamber and combustor。

4、Protective gas trolley heating furnace function

Protective gas trolley heating furnaceit has the functions of heat treatment, Casting heating, anneal, quench and Forging heating，the product looks atmospheric.，The high-temperature flame and flue gas generated when the fuel burns in the furnace are used as heat sources to heat the medium flowing in the tube to reach the specified process temperature. Fuel is ejected from the burner and burned, resulting in high-temperature flame and high-temperature flue gas. The high-temperature flame transfers heat to the furnace tube in the radiation chamber through radiation, and then to the medium in the furnace tube. The high-temperature flue gas enters the convection chamber of the heating furnace upward due to the suction force of the chimney or the action of the induced draft fan, and the heat is transferred to the furnace tube in the convection chamber by convection, and then to the medium in the furnace tube.，is a common Protective gas trolley heating furnace，is a kind of Protective gas trolley heating furnace manufactured by One-combustion energy saving。

Protective gas trolley heating furnace

5、Structural characteristics of Protective gas trolley heating furnace

The Protective gas trolley heating furnace has the following structure

1. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

2. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

3. Radiation chamber

The heat load of the main place for Protective gas trolley heating furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

4. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

5. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

Protective gas trolley heating furnace

6、One-combustion energy saving workshop real shot

On-site aerial photography of Protective gas trolley heating furnace。

Protective gas trolley heating furnace

As you can see from the live video.One-combustion energy saving multifunctional, with functions such as normalizing, quench, temper, hardening and tempering and normalizing。

Protective gas trolley heating furnaceIt has the advantages of high heating efficiency, high energy utilization, accurate temperature control, good environmental protection performance, simple operation and strong adaptability.、Efficient combustion and waste heat recovery system can significantly reduce energy consumption, thus reducing operating costs.、Natural gas is mainly used as fuel, but some equipment also supports other types of gas or liquid fuel, which has strong fuel adaptability.、Adopting advanced combustion technology and control system can realize full combustion of natural gas and improve combustion efficiency. At the same time, some equipment is also equipped with waste heat recovery system, which can further recycle the waste heat in exhaust smoke and improve energy utilization efficiency.、Using regenerative combustion system or advanced burner design can realize the uniform distribution of temperature in the furnace, ensure the uniform heating of metal materials and improve product quality.，it can be used in shipping, Machinery manufacturing, petroleum, chemical industry, building materials and other industries。
