What is a Profile heating furnace? Forging furnace specifications, models, and parameters

Profile heating furnaceIt is a kind of equipment which uses gas as fuel and is specially used for heating metal before forging.，the principle is simple.The high-temperature flame and flue gas generated by burning gas (such as natural gas and liquefied petroleum gas) in the furnace are used as heat sources to heat metal materials.，is a popular Profile heating furnace，is based on One-combustion energy saving is a Profile heating furnace newly developed by One-combustion energy saving。

1、Brief introduction of Profile heating furnace

Profile heating furnaceIt is a kind of heating equipment using natural gas as fuel, which is mainly used to heat metal materials to the required forging temperature in a short time.，super quality and competitive price。

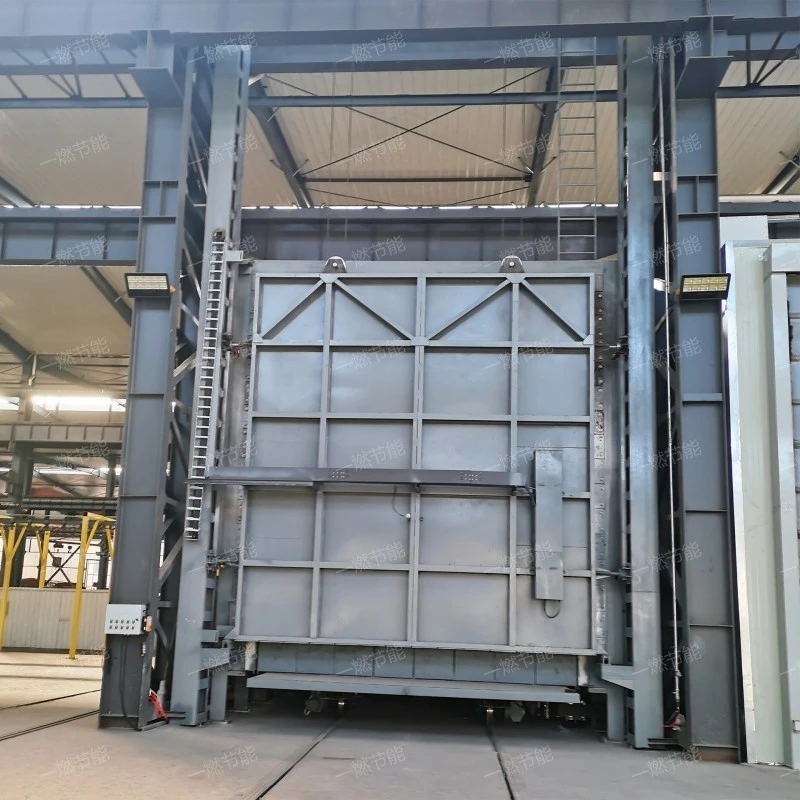

Profile heating furnace

2、Profile heating furnace function

Profile heating furnacemultifunctional, with functions such as temper, anneal, hardening and tempering, heat treatment and Casting heating，It has a wide range of uses, and is often used inMetal forging heating,Improve production efficiency,Metal melting and casting,Metal tempering,Metal heat treatment and so on，at the start of the operation,The high-temperature flame and flue gas generated when fuel (natural gas) burns in the furnace are used as heat sources to heat the medium flowing in the tube to reach the specified process temperature.。

Profile heating furnace

3、Profile heating furnace characteristics

The Profile heating furnace features are as follows:

1. energy saving and environmental protection

As a clean energy source, gas produces less waste gas and waste smoke after combustion, which is beneficial to environmental protection. At the same time, some Profile heating furnaces are also equipped with waste heat recovery system, which further improves the energy utilization efficiency.

2. Easy to control

The combustion system and ventilation system of the Profile heating furnace can be adjusted as required to accurately control the temperature and atmosphere in the furnace and meet the heating requirements of different metal materials.

3. Efficient heating

The Profile heating furnace can heat the metal to the required forging temperature in a very short time, reducing the loss caused by the oxidation of the metal.

4. Stable and reliable

The Profile heating furnace has a stable combustion system and temperature control system, which can ensure the uniformity and stability of the temperature in the furnace, thus improving the quality and production efficiency of forged products.

5. Strong adaptability

The Profile heating furnace is suitable for forging and heating of various metal materials and has a wide range of applications.

Profile heating furnace

4、Profile heating furnace structure

The Profile heating furnace structure is introduced as follows:

1. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

2. Radiation chamber

The heat load of the main place for Profile heating furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

3. Waste heat recovery system

Used to recover the exhaust heat of the heating furnace. There are two kinds of recovery methods, one is to recover by preheating combustion air, so that the recovered heat can return to the furnace again; The other is to use another recovery system to recover heat. The former is called air preheating mode, and the latter is usually called waste heat boiler mode.

4. convection chamber

The material is heated by convection heat transfer of high temperature flue gas discharged from the radiation chamber. Flue gas washes the tube wall of the furnace tube at a high speed to carry out effective convection heat transfer, and its heat load accounts for about 20%-30% of the whole furnace. The convection chamber is generally arranged above the radiation chamber, and some are placed on the ground alone. In order to improve the heat transfer effect, nail head tubes or finned tubes are often used in furnace tubes.

5. furnace chamber

A space for holding metallic materials for heating.

Profile heating furnace

5、Advantages of Profile heating furnace principle

Profile heating furnaceHeat of combustion based on fuel. Natural gas is sprayed from the burner, mixed with combustion-supporting air and burned to produce high-temperature flame and smoke. These high-temperature flames and smoke transfer heat to the metal materials in the furnace by radiation and convection, so that they gradually heat up to the temperature required for forging.，it is widely used in material, light industry, pharmacy, automobile, Household necessities and other industries，It is a forging heating device using gas as fuel.，the product looks beautiful.，it has the functions of heat treatment, Casting heating, anneal, normalizing and quench。

Profile heating furnace

6、One-combustion energy saving delivery site

You can buy Profile heating furnace according to your needs and show you Profile heating furnace videos.。

Profile heating furnace

As you can see from the live video.One-combustion energy saving Widely used inEnergy conservation and environmental protection,Energy conservation and environmental protection,Metal forging heating,Metal melting and casting,Metal tempering and so on。

Profile heating furnaceNatural gas is used as a heat source, resulting in less waste gas and smoke after combustion, and less pollution to the environment. This will help reduce industrial emissions and improve the atmospheric environment.、Efficient combustion and waste heat recovery system can significantly reduce energy consumption, thus reducing operating costs.、The user interface is friendly, and the operator is easy to use. At the same time, the equipment also has the function of fault diagnosis and alarm, which can find and deal with abnormal situations in time.、Usually equipped with intelligent control system, it can automatically adjust the parameters such as gas supply and air flow according to the heating demand, and realize accurate control of the temperature and atmosphere in the furnace.、The metal material can be heated to the required temperature in a short time, and the production efficiency is improved.，it has the functions of normalizing, quench, anneal, temper and Forging heating，features include Strong adaptability, Stable and reliable, Easy to maintain, Easy to control and Strong adaptability。
