Introduction to Roasting tube quenching furnace, how much is the price of the forging furnace?

Roasting tube quenching furnaceIt is a kind of equipment that uses natural gas as fuel to heat metal materials and make them reach forging temperature.，It has a wide range of uses, and is often used inMetal heat treatment,Metal tempering,Metal melting and casting,Energy conservation and environmental protection,Improve production efficiency and so on，multifunctional, with functions such as heat treatment, hardening and tempering, Forging heating, temper and Casting heating。

1、Brief introduction of Roasting tube quenching furnace

Roasting tube quenching furnaceIt is a kind of equipment that uses natural gas as fuel to heat metal materials and make them reach forging temperature.。

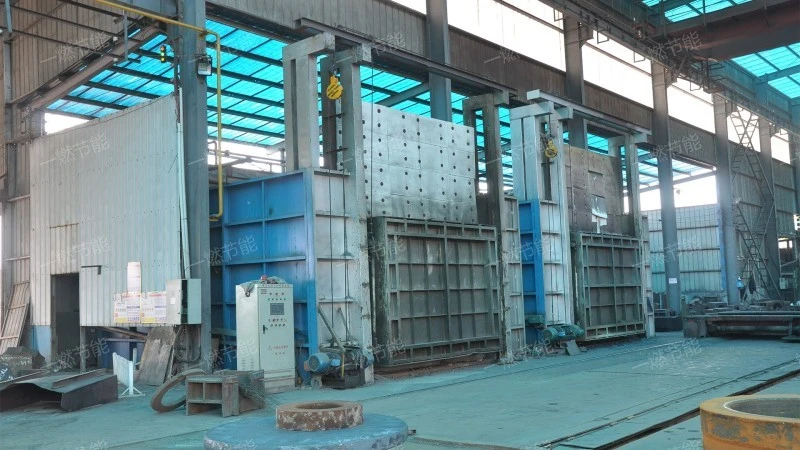

Roasting tube quenching furnace

2、Structural advantages of Roasting tube quenching furnace

The Roasting tube quenching furnace has the following structure

1. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

2. convection chamber

The material is heated by convection heat transfer of high temperature flue gas discharged from the radiation chamber. Flue gas washes the tube wall of the furnace tube at a high speed to carry out effective convection heat transfer, and its heat load accounts for about 20%-30% of the whole furnace. The convection chamber is generally arranged above the radiation chamber, and some are placed on the ground alone. In order to improve the heat transfer effect, nail head tubes or finned tubes are often used in furnace tubes.

3. Radiation chamber

The heat load of the main place for Roasting tube quenching furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

4. furnace chamber

A space for holding metallic materials for heating.

5. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

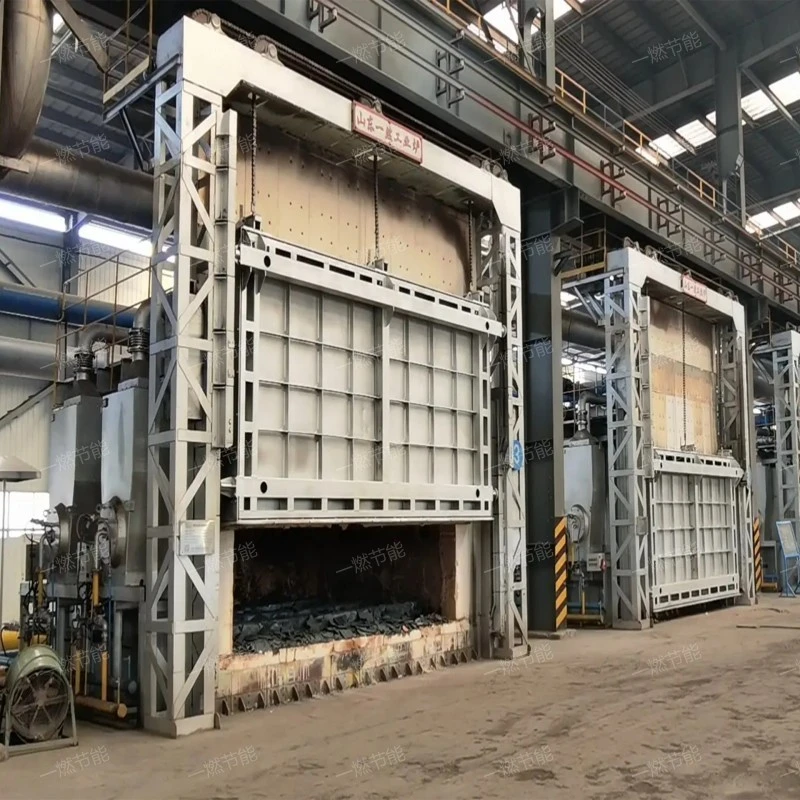

Roasting tube quenching furnace

3、Working principle of Roasting tube quenching furnace

Roasting tube quenching furnaceat runtime,The high-temperature flame and flue gas generated when the fuel burns in the furnace are used as heat sources to heat the medium flowing in the tube to reach the specified process temperature. Fuel is ejected from the burner and burned, resulting in high-temperature flame and high-temperature flue gas. The high-temperature flame transfers heat to the furnace tube in the radiation chamber through radiation, and then to the medium in the furnace tube. The high-temperature flue gas enters the convection chamber of the heating furnace upward due to the suction force of the chimney or the action of the induced draft fan, and the heat is transferred to the furnace tube in the convection chamber by convection, and then to the medium in the furnace tube.，Simple structure and advanced technology.，it is mainly composed of Radiation chamber, ventilation system, convection chamber, ventilation system and recovery of waste heat，It is a kind of equipment which uses gas as fuel and is specially used for heating metal before forging.，can be customized according to user's needs.。

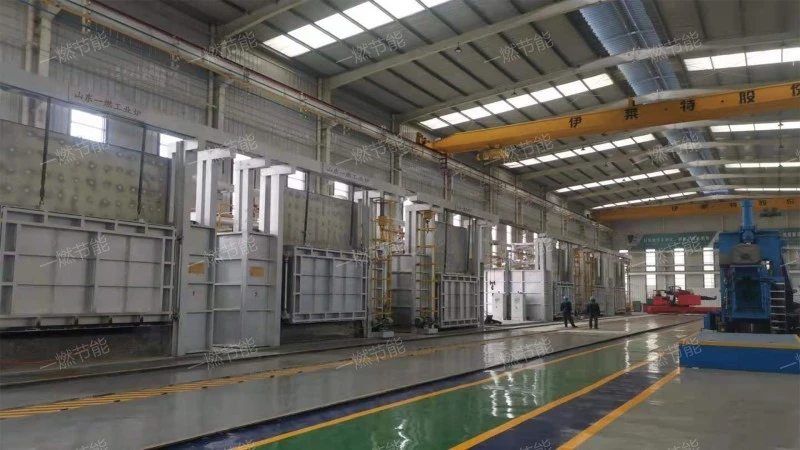

Roasting tube quenching furnace

4、Roasting tube quenching furnace application

Roasting tube quenching furnaces have the following purposes.

1. Metal heat treatment

In addition to forging heating, Roasting tube quenching furnaces can also be used for metal heat treatment processes, such as annealing and tempering. These processes can improve the microstructure and properties of metal materials, and improve their service life and mechanical properties.

2. Metal melting and casting

Although it is mainly used for forging heating, some types of Roasting tube quenching furnaces can also be used in metal melting and casting processes. This is especially suitable for melting and casting of small or special alloys.

3. Improve production efficiency

The Roasting tube quenching furnace has the advantages of fast heating speed and accurate temperature control, which can improve production efficiency. This is especially important for mass-produced forging workshops.

4. Metal forging heating

The Roasting tube quenching furnace can heat the metal material to the temperature required for forging, improve its plasticity and fluidity, and thus facilitate forging. This is very important for the forging of various metal materials.

5. Metal heat treatment

In addition to forging heating, Roasting tube quenching furnaces can also be used for metal heat treatment processes, such as annealing and tempering. These processes can improve the microstructure and properties of metal materials, and improve their service life and mechanical properties.

Roasting tube quenching furnace

5、Functional advantages of Roasting tube quenching furnace

Roasting tube quenching furnaces have the following advantages.

1. Efficient combustion

The Roasting tube quenching furnace adopts advanced combustion technology and control system, which can realize full combustion of natural gas and improve combustion efficiency. At the same time, some equipment is also equipped with waste heat recovery system, which can further recycle the waste heat in exhaust smoke and improve energy utilization efficiency.

2. Improve product quality

Because the Roasting tube quenching furnace can realize uniform heating and precise control, it is helpful to improve the product quality and yield of metal materials.

3. Rapid temperature rise

The Roasting tube quenching furnace can heat the metal material to the required temperature in a short time, which improves the production efficiency.

4. Uniform heating

The Roasting tube quenching furnace adopts regenerative combustion system or advanced burner design, which can realize uniform distribution of temperature in the furnace, ensure uniform heating of metal materials and improve product quality.

5. Reduce operating costs

The efficient combustion and waste heat recovery system of the Roasting tube quenching furnace can significantly reduce energy consumption, thus reducing operating costs.

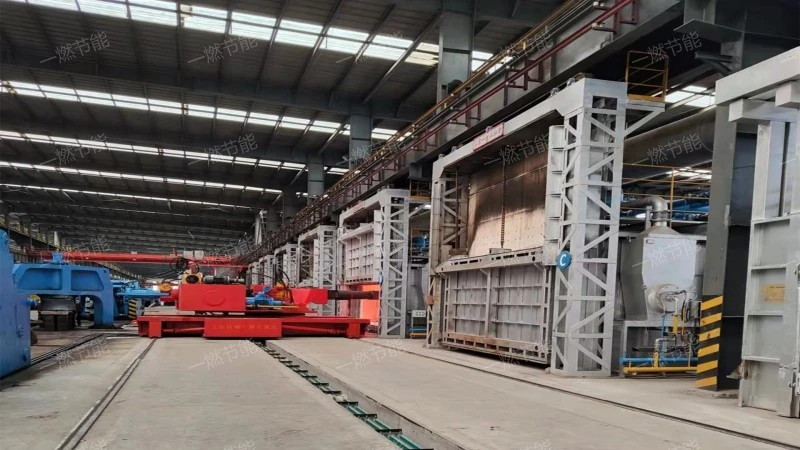

Roasting tube quenching furnace

6、Real-time shooting in One-combustion energy saving's production workshop

The finished products of the Roasting tube quenching furnace factory are actually photographed, and all kinds of specifications and models are photographed in all directions. The design is exquisite and the quality is reliable. Don't forget to make an appointment to visit the factory by phone.。

One-combustion energy saving

The finished products of the Roasting tube quenching furnace factory are actually photographed, and all kinds of specifications and models are photographed in all directions. The design is exquisite and the quality is reliable. Don't forget to make an appointment to visit the factory by phone.。

Roasting tube quenching furnaceit has the characteristics of Strong adaptability, energy-efficient, energy saving and environmental protection, Stable and reliable and Easy to maintain，It is a product series that integrates Metal forging heating, Metal heat treatment, Metal melting and casting, Metal tempering and Energy conservation and environmental protection。
