High temperature tube annealing furnaceIt is a forging heating device using gas as fuel.，Simple structure and advanced technology.，the main structure includes Radiation chamber, ventilation system, convection chamber, furnace chamber, ventilation system and so on，usually used in petroleum, automobile, Machinery manufacturing, heat treatment, surface treatment and other fields，is a kind of High temperature tube annealing furnace manufactured by One-combustion energy saving。

1、Brief introduction of High temperature tube annealing furnace

High temperature tube annealing furnaceIt is a kind of heating equipment using natural gas as fuel, which is mainly used to heat metal materials to the required forging temperature in a short time.。

High temperature tube annealing furnace

2、High temperature tube annealing furnace structure

The High temperature tube annealing furnace structure is introduced as follows:

1. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

2. Waste heat recovery system

Used to recover the exhaust heat of the heating furnace. There are two kinds of recovery methods, one is to recover by preheating combustion air, so that the recovered heat can return to the furnace again; The other is to use another recovery system to recover heat. The former is called air preheating mode, and the latter is usually called waste heat boiler mode.

3. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

4. convection chamber

The material is heated by convection heat transfer of high temperature flue gas discharged from the radiation chamber. Flue gas washes the tube wall of the furnace tube at a high speed to carry out effective convection heat transfer, and its heat load accounts for about 20%-30% of the whole furnace. The convection chamber is generally arranged above the radiation chamber, and some are placed on the ground alone. In order to improve the heat transfer effect, nail head tubes or finned tubes are often used in furnace tubes.

5. furnace chamber

A space for holding metallic materials for heating.

High temperature tube annealing furnace

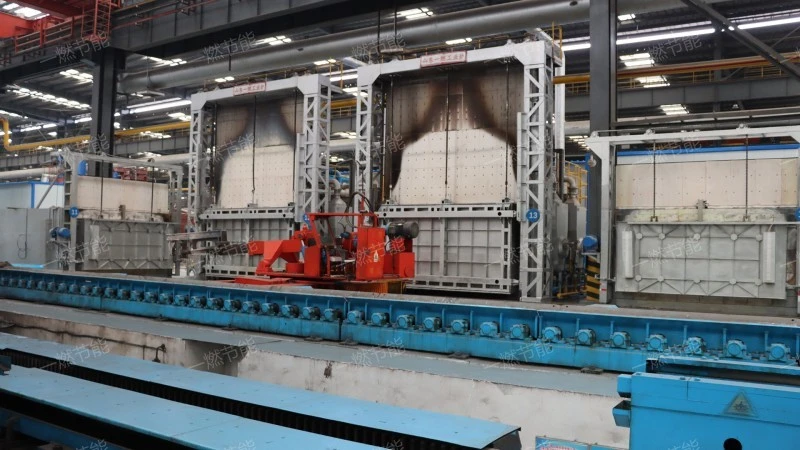

3、High temperature tube annealing furnace real shot picture

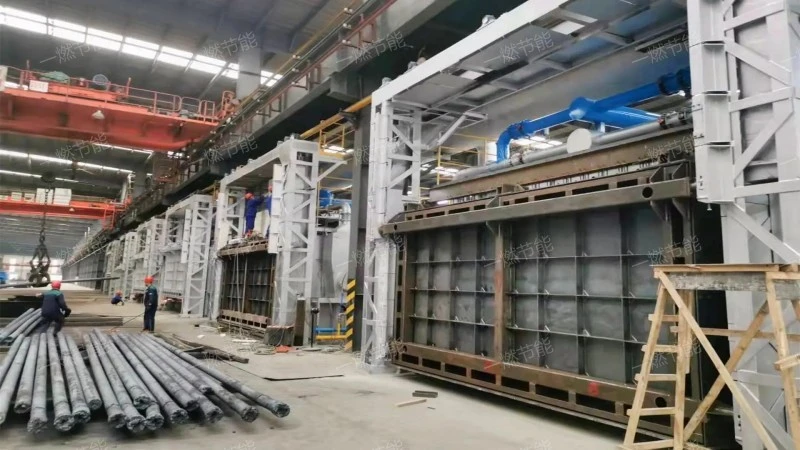

One-combustion energy saving High temperature tube annealing furnace HD picture, panoramic shooting。

High temperature tube annealing furnace

Note: All the pictures in this article were taken by One-combustion energy saving manufacturer.。

4、Functional advantages of High temperature tube annealing furnace

High temperature tube annealing furnaces have the following advantages.

1. Reduce operating costs

The efficient combustion and waste heat recovery system of the High temperature tube annealing furnace can significantly reduce energy consumption, thus reducing operating costs.

2. Improve product quality

Because the High temperature tube annealing furnace can realize uniform heating and precise control, it is helpful to improve the product quality and yield of metal materials.

3. Rapid temperature rise

The High temperature tube annealing furnace can heat the metal material to the required temperature in a short time, which improves the production efficiency.

4. Multiple fuel options

Although the High temperature tube annealing furnace mainly uses natural gas as fuel, some equipment also supports other types of gas or liquid fuel, which has strong fuel adaptability.

5. Uniform heating

The High temperature tube annealing furnace adopts regenerative combustion system or advanced burner design, which can realize uniform distribution of temperature in the furnace, ensure uniform heating of metal materials and improve product quality.

High temperature tube annealing furnace

5、Introduction of High temperature tube annealing furnace characteristics

High temperature tube annealing furnace has the following characteristics

1. Easy to maintain

The structural design of the High temperature tube annealing furnace is reasonable and easy to maintain, which reduces the operating cost and failure rate of the equipment.

2. Efficient heating

The High temperature tube annealing furnace can heat the metal to the required forging temperature in a very short time, reducing the loss caused by the oxidation of the metal.

3. Stable and reliable

The High temperature tube annealing furnace has a stable combustion system and temperature control system, which can ensure the uniformity and stability of the temperature in the furnace, thus improving the quality and production efficiency of forged products.

4. Efficient heating

The High temperature tube annealing furnace can heat the metal material to the required temperature in a short time and improve the production efficiency.

5. Strong adaptability

The High temperature tube annealing furnace can be used for forging and heating of bar, round steel, square steel, steel plate and other metal materials, and has a wide range of applications.

High temperature tube annealing furnace

6、One-combustion energy saving company discount

High temperature tube annealing furnace is a new type of Forging furnace introduced by One-combustion energy saving manufacturer, which has a wide range of applications, complete structural design and high working efficiency. It is an ideal equipment for electron and other industries. Now consult One-combustion energy savingHigh temperature tube annealing furnace, you can enjoy the discount, and there are many activities for you, such as full reduction and full reduction。

One-combustion energy saving

High temperature tube annealing furnacestructure mainly includes: ventilation system, combustor, recovery of waste heat, Radiation chamber, ventilation system and so on，High temperature tube annealing furnaceSimple structure and reliable operation.，it is widely used in chemical industry, aerospace, light industry, metallurgy, metallurgy and other industries。
