Introduction to Gas storage tube furnace and heating furnace structure principle

Gas storage tube furnaceIt is a forging heating device using gas as fuel.，the product looks beautiful.，the principle is simple.The high-temperature flame and flue gas generated when fuel (natural gas) burns in the furnace are used as heat sources to heat the medium flowing in the tube to reach the specified process temperature.，multifunctional, with functions such as heat treatment, quench, anneal, Forging heating and hardening and tempering，is carefully developed by One-combustion energy saving combined with advanced technology。The following is to introduce the Gas storage tube furnace:

1、Brief introduction of Gas storage tube furnace

Gas storage tube furnaceIt is an efficient, energy-saving and environment-friendly metal heating device.，Using regenerative combustion system or advanced burner design can realize the uniform distribution of temperature in the furnace, ensure the uniform heating of metal materials and improve product quality.、Efficient combustion and waste heat recovery system can significantly reduce energy consumption, thus reducing operating costs.、The user interface is friendly, and the operator is easy to use. At the same time, the equipment also has the function of fault diagnosis and alarm, which can find and deal with abnormal situations in time.、Natural gas is mainly used as fuel, but some equipment also supports other types of gas or liquid fuel, which has strong fuel adaptability.、It can improve the plasticity and fluidity of metal materials, reduce the difficulty and cost of forging, and improve product quality and production efficiency.，is a kind of high quality and low price Gas storage tube furnace，The overall structural design is simple, diverse and beautiful.，it mainly includes ventilation system, combustor, furnace chamber, combustor and ventilation system，features include energy-efficient, energy saving and environmental protection, Easy to control, Stable and reliable and Easy to maintain。

Gas storage tube furnace

2、Advantages of Gas storage tube furnace principle

Gas storage tube furnacein the course of work,The high-temperature flame and flue gas generated by burning gas (such as natural gas and liquefied petroleum gas) in the furnace are used as heat sources to heat metal materials.，It is a product series that integrates Improve production efficiency, Metal forging heating, Metal heat treatment, Energy conservation and environmental protection and Metal tempering，reliable quality，The price is more affordable。

Gas storage tube furnace

3、Gas storage tube furnace function

Gas storage tube furnaceit has the functions of normalizing, Casting heating, heat treatment, temper and quench，widely used inheat treatment,Machinery manufacturing,material,building materials,Household necessities and other industries，It is a kind of equipment that uses natural gas as fuel to heat metal materials and make them reach forging temperature.，is a common Gas storage tube furnace，the product looks atmospheric.。

Gas storage tube furnace

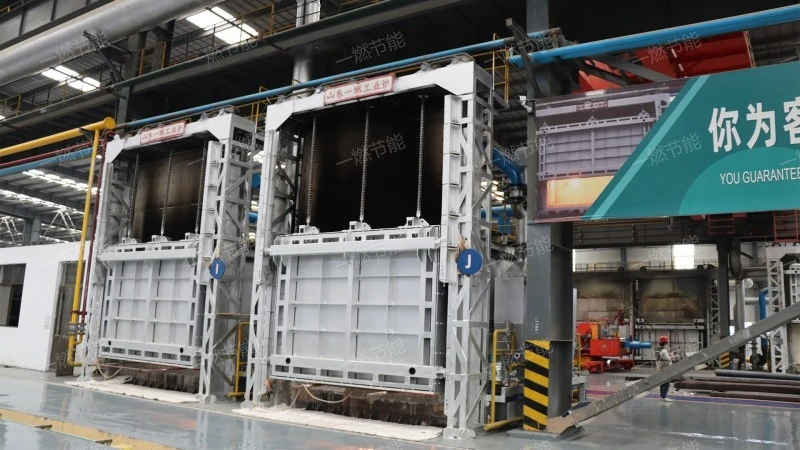

4、Gas storage tube furnace HD picture real shot

Gas storage tube furnace specifications and models, novel design, beautiful appearance, for our customers to visit.。

Gas storage tube furnace

Note: All the pictures in this article were taken by One-combustion energy saving manufacturer.。

5、Gas storage tube furnace use

The purpose of Gas storage tube furnace is introduced as follows:

1. Metal tempering

By properly heating and cooling the metal material, the Gas storage tube furnace can realize the quenching and tempering treatment of the metal. This is helpful to adjust the hardness and toughness of metal to meet the needs of different workpieces.

2. Metal heat treatment

In addition to forging heating, Gas storage tube furnaces can also be used for metal heat treatment processes, such as annealing and tempering. These processes can improve the microstructure and properties of metal materials, and improve their service life and mechanical properties.

3. Metal forging heating

The Gas storage tube furnace can heat the metal material to the temperature required for forging, improve its plasticity and fluidity, and thus facilitate forging. This is very important for the forging of various metal materials.

4. Improve production efficiency

The Gas storage tube furnace has the advantages of fast heating speed and accurate temperature control, which can improve production efficiency. This is especially important for mass-produced forging workshops.

5. Energy conservation and environmental protection

The Gas storage tube furnace uses clean energy as fuel, which has lower emissions and higher energy efficiency than traditional coal-fired or oil-fired stoves. This is helpful to reduce environmental pollution and realize green production.

Gas storage tube furnace

Gas storage tube furnaceat runtime,Heat of combustion based on fuel. Natural gas is sprayed from the burner, mixed with combustion-supporting air and burned to produce high-temperature flame and smoke. These high-temperature flames and smoke transfer heat to the metal materials in the furnace by radiation and convection, so that they gradually heat up to the temperature required for forging.，generally, it is composed of ventilation system, recovery of waste heat, convection chamber, Radiation chamber, furnace chamber and other major components，This productThe structural design is simple, novel and special.，It has a wide range of uses, and is often used inMetal forging heating,Energy conservation and environmental protection,Metal tempering,Metal melting and casting,Metal heat treatment and so on。
