Introduction to Double pass forging heating furnace, introduction to Forging furnace function advantages and characteristics

Double pass forging heating furnaceIt is a kind of heating equipment using natural gas as fuel, which is mainly used to heat metal materials to the required forging temperature in a short time.，is a popular Double pass forging heating furnace，it is widely used in Machinery manufacturing, Household necessities, material, surface treatment, chemical industry and other industries。

1、Brief introduction of Double pass forging heating furnace

Double pass forging heating furnaceIt is a kind of equipment that uses natural gas as fuel to heat metal materials and make them reach forging temperature.，the advantage is The use of clean and environmentally friendly natural gas as fuel effectively avoids the adverse effects of chemical reactions between impurities such as coal-fired furnaces and forgings during heating. At the same time, natural gas has high calorific value and high combustion temperature, and the combustion temperature can be further increased by preheating air and fuel. In addition, the gas forging heating furnace also has good heat loss control ability and intelligent control system, which can accurately adjust the ratio of air to natural gas, ensure full combustion of natural gas, and reduce mechanical incomplete combustion and chemical incomplete combustion.、The user interface is friendly, and the operator is easy to use. At the same time, the equipment also has the function of fault diagnosis and alarm, which can find and deal with abnormal situations in time.、The metal material can be heated to the required temperature in a short time, and the production efficiency is improved.、Using regenerative combustion system or advanced burner design can realize the uniform distribution of temperature in the furnace, ensure the uniform heating of metal materials and improve product quality.、Efficient combustion and waste heat recovery system can significantly reduce energy consumption, thus reducing operating costs.，The price is more affordable。

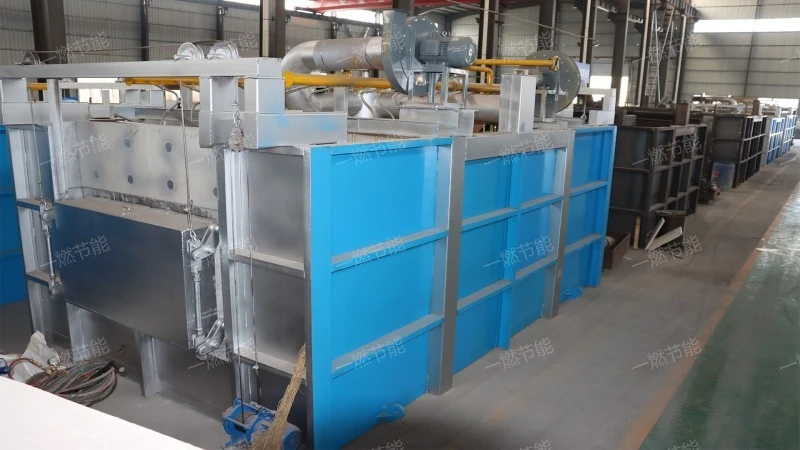

Double pass forging heating furnace

2、Double pass forging heating furnace principle

Double pass forging heating furnaceat the start of the operation,Heat of combustion based on fuel. Fuel gas (such as natural gas, liquefied petroleum gas, etc.) is mixed with combustion-supporting air through the burner and burned to produce high-temperature flame and flue gas. These high-temperature flames and smoke exchange heat with metal materials in the furnace, so that they gradually heat up to the temperature required for forging.，has been favored by more and more customers.。

Double pass forging heating furnace

3、Functional advantages of Double pass forging heating furnace

The advantages of Double pass forging heating furnace are as follows:

1. clean energy

Natural gas, as a clean energy source, produces less waste gas and dust after combustion, which has little pollution to the environment. This will help reduce industrial emissions and improve the atmospheric environment.

2. Multiple fuel options

Although the Double pass forging heating furnace mainly uses natural gas as fuel, some equipment also supports other types of gas or liquid fuel, which has strong fuel adaptability.

3. Improve product quality

Because the Double pass forging heating furnace can realize uniform heating and precise control, it is helpful to improve the product quality and yield of metal materials.

4. Intelligent control

The Double pass forging heating furnace is usually equipped with an intelligent control system, which can automatically adjust the parameters such as gas supply and air flow according to the heating demand, and realize accurate control of the temperature and atmosphere in the furnace.

5. Efficient combustion

The Double pass forging heating furnace adopts advanced combustion technology and control system, which can realize full combustion of natural gas and improve combustion efficiency. At the same time, some equipment is also equipped with waste heat recovery system, which can further recycle the waste heat in exhaust smoke and improve energy utilization efficiency.

Double pass forging heating furnace

4、Double pass forging heating furnace structure composition

The Double pass forging heating furnace structure is introduced as follows:

1. Waste heat recovery system

Used to recover the exhaust heat of the heating furnace. There are two kinds of recovery methods, one is to recover by preheating combustion air, so that the recovered heat can return to the furnace again; The other is to use another recovery system to recover heat. The former is called air preheating mode, and the latter is usually called waste heat boiler mode.

2. furnace chamber

A space for holding metallic materials for heating.

3. convection chamber

The material is heated by convection heat transfer of high temperature flue gas discharged from the radiation chamber. Flue gas washes the tube wall of the furnace tube at a high speed to carry out effective convection heat transfer, and its heat load accounts for about 20%-30% of the whole furnace. The convection chamber is generally arranged above the radiation chamber, and some are placed on the ground alone. In order to improve the heat transfer effect, nail head tubes or finned tubes are often used in furnace tubes.

4. convection chamber

The material is heated by convection heat transfer of high temperature flue gas discharged from the radiation chamber. Flue gas washes the tube wall of the furnace tube at a high speed to carry out effective convection heat transfer, and its heat load accounts for about 20%-30% of the whole furnace. The convection chamber is generally arranged above the radiation chamber, and some are placed on the ground alone. In order to improve the heat transfer effect, nail head tubes or finned tubes are often used in furnace tubes.

5. furnace chamber

A space for holding metallic materials for heating.

Double pass forging heating furnace

5、Double pass forging heating furnace characteristics

The Double pass forging heating furnace features are as follows:

1. Easy to control

By adjusting the burner and ventilation system, the temperature and atmosphere in the furnace can be accurately controlled to meet the heating requirements of different metal materials.

2. energy saving and environmental protection

As a clean energy source, natural gas produces less pollutants after combustion, which is beneficial to environmental protection. At the same time, the application of waste heat recovery system further improves the energy utilization efficiency.

3. Easy to maintain

The structural design of the Double pass forging heating furnace is reasonable and easy to maintain, which reduces the operating cost and failure rate of the equipment.

4. Easy to control

By adjusting the burner and ventilation system, the temperature and atmosphere in the furnace can be accurately controlled to meet the heating requirements of different metal materials.

5. Strong adaptability

The Double pass forging heating furnace is suitable for forging and heating of various metal materials and has a wide range of applications.

Double pass forging heating furnace

6、One-combustion energy saving's strength

The company has many years of Double pass forging heating furnace manufacturing experience, large scale and strong strength.。

One-combustion energy saving

Double pass forging heating furnaceat work,Heat of combustion based on fuel. Natural gas is sprayed from the burner, mixed with combustion-supporting air and burned to produce high-temperature flame and smoke. These high-temperature flames and smoke transfer heat to the metal materials in the furnace by radiation and convection, so that they gradually heat up to the temperature required for forging.，It is an important heating equipment before metal forging. It uses natural gas as fuel to heat metal materials through high-temperature flame and smoke generated by combustion to meet the requirements of forging process.。
