Introduction to Regenerative gas through furnace and heating furnace advantages and features

Regenerative gas through furnaceIt is an efficient, energy-saving and environment-friendly metal heating device.，the product looks atmospheric.。The following is to introduce the Regenerative gas through furnace:

1、Brief introduction of Regenerative gas through furnace

Regenerative gas through furnaceIt is a kind of heating equipment using natural gas as fuel, which is mainly used to heat metal materials to the required forging temperature in a short time.，It has a wide range of uses, and is often used inMetal forging heating,Metal heat treatment,Metal tempering,Improve production efficiency,Metal forging heating and so on，customizable。

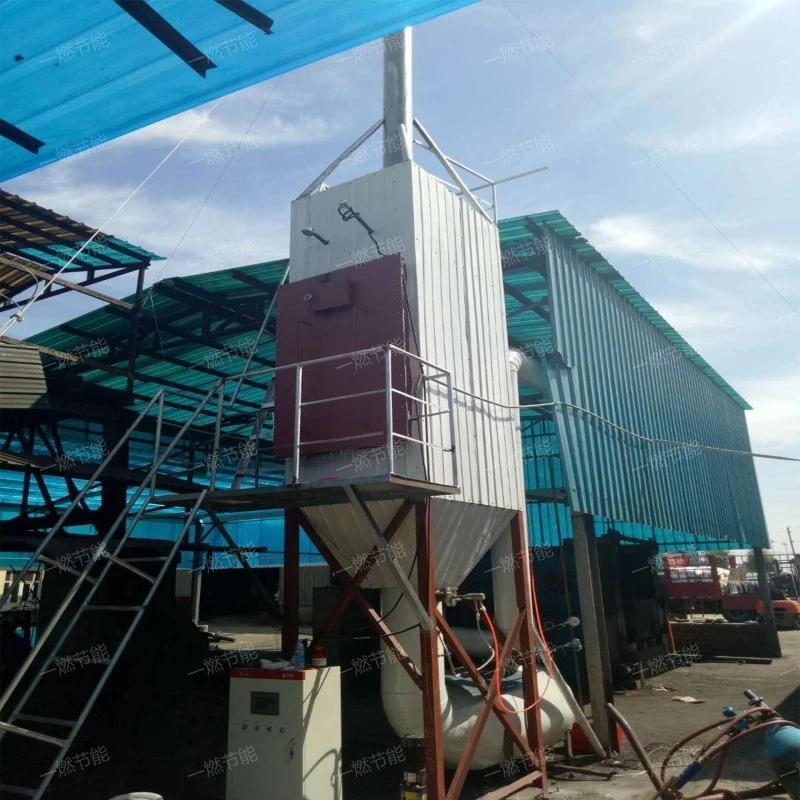

Regenerative gas through furnace

2、Regenerative gas through furnace field real shot

One-combustion energy saving provides customers with on-site high-definition video, fully demonstrates the advantages of on-site Regenerative gas through furnacet operation, and helps customers to deeply understand the product production process and production site, and gain favorable comments and recognition from customers.。

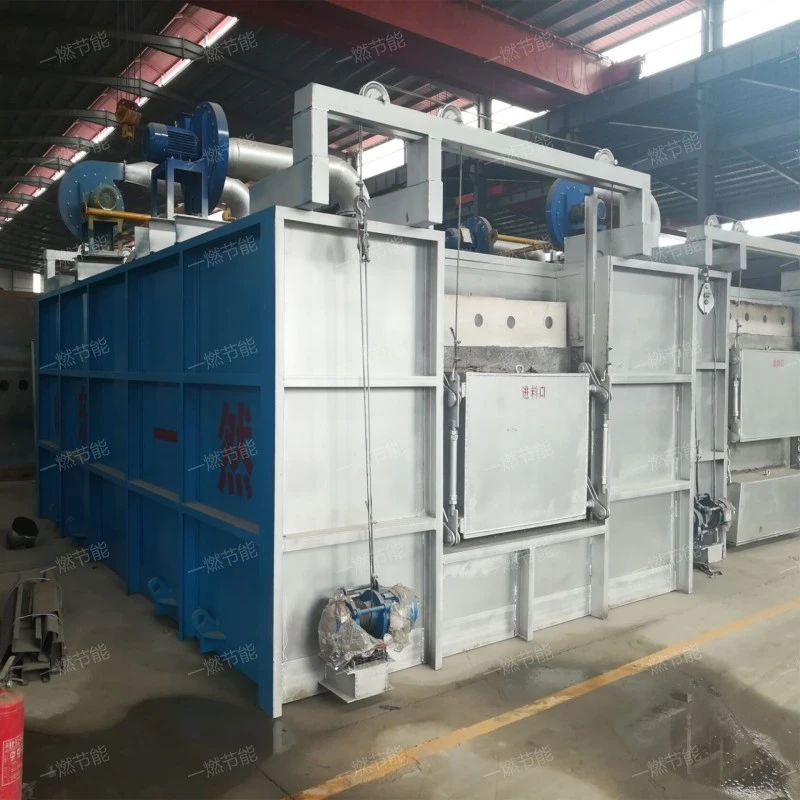

Regenerative gas through furnace

As you can see from the live video.，One-combustion energy saving in the course of work,The high-temperature flame and flue gas generated when fuel (natural gas) burns in the furnace are used as heat sources to heat the medium flowing in the tube to reach the specified process temperature.。

3、Regenerative gas through furnace structure composition

The Regenerative gas through furnace has the following structure

1. convection chamber

The high-temperature flue gas discharged from the radiation chamber is used for convective heat transfer to further heat the metal materials.

2. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

3. Radiation chamber

The heat load of the main place for Regenerative gas through furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

4. Waste heat recovery system

Recover the waste heat in the exhaust gas of heating furnace to improve the energy utilization efficiency.

5. furnace chamber

A space for holding metallic materials for heating.

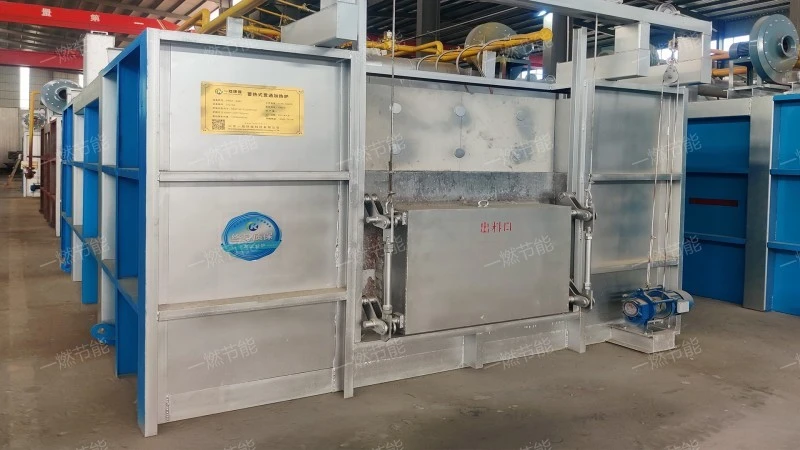

Regenerative gas through furnace

4、Regenerative gas through furnace performance advantage

Regenerative gas through furnaces have the following advantages.

1. easy to operate

The operation interface of the Regenerative gas through furnace is friendly and easy for operators to use. At the same time, the equipment also has the function of fault diagnosis and alarm, which can find and deal with abnormal situations in time.

2. Efficient combustion

The Regenerative gas through furnace adopts advanced combustion technology and control system, which can realize full combustion of natural gas and improve combustion efficiency. At the same time, some equipment is also equipped with waste heat recovery system, which can further recycle the waste heat in exhaust smoke and improve energy utilization efficiency.

3. Extend the service life of equipment

The Regenerative gas through furnace adopts advanced combustion technology and materials, which has a long service life and low maintenance cost.

4. Rapid temperature rise

The Regenerative gas through furnace can heat the metal material to the required temperature in a short time, which improves the production efficiency.

5. Reduce operating costs

The efficient combustion and waste heat recovery system of the Regenerative gas through furnace can significantly reduce energy consumption, thus reducing operating costs.

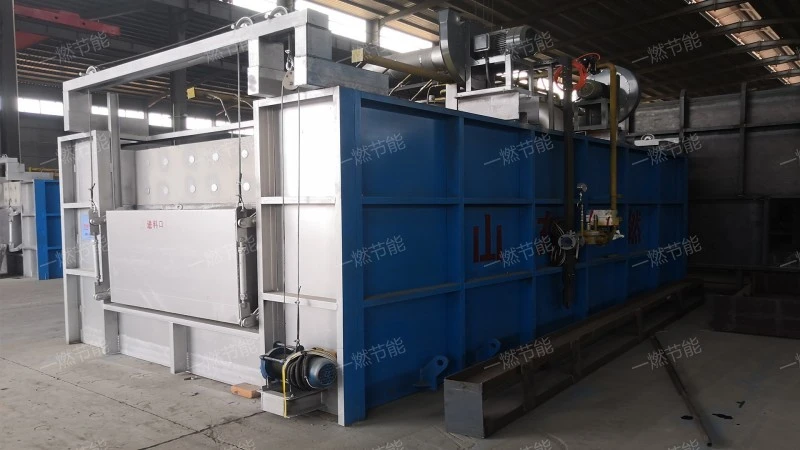

Regenerative gas through furnace

5、Advantages of Regenerative gas through furnace principle

Regenerative gas through furnaceHeat of combustion based on fuel. Fuel gas (such as natural gas, liquefied petroleum gas, etc.) is mixed with combustion-supporting air through the burner and burned to produce high-temperature flame and flue gas. These high-temperature flames and smoke exchange heat with metal materials in the furnace, so that they gradually heat up to the temperature required for forging.，is a Regenerative gas through furnace，usually used in metallurgy, machinery, heat treatment, surface treatment, building materials and other fields，The overall structural design is simple and novel.，it is usually composed of recovery of waste heat, ventilation system, Radiation chamber, convection chamber and ventilation system，it is an ideal choice for customers to buy Regenerative gas through furnace。

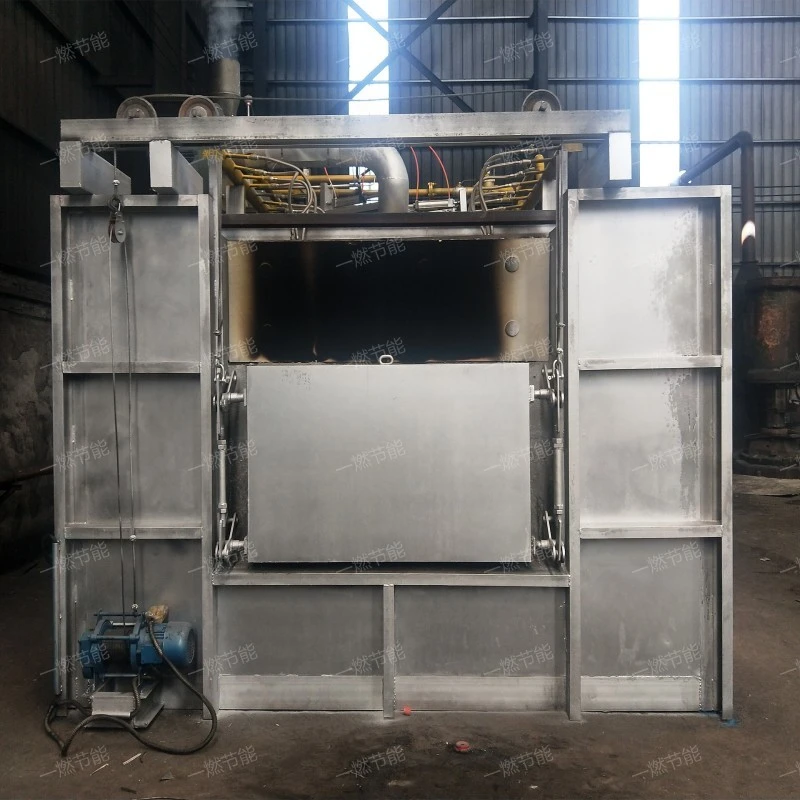

Regenerative gas through furnace

Regenerative gas through furnaceit is widely used inwar industry,electron,material,chemical industry,pharmacy and other industries，the product looks atmospheric.，multifunctional, with functions such as Casting heating, anneal, normalizing, temper and quench。
