What is a Stepping bottom heating furnace? forging furnace specifications, models, and parameters

Stepping bottom heating furnaceIt is a kind of heating equipment using natural gas as fuel, which is mainly used to heat metal materials to the required forging temperature in a short time.，Mainly used forImprove production efficiency,Metal forging heating,Improve production efficiency,Metal forging heating andEnergy conservation and environmental protection，at runtime,Heat of combustion based on fuel. Natural gas is sprayed from the burner, mixed with combustion-supporting air and burned to produce high-temperature flame and smoke. These high-temperature flames and smoke transfer heat to the metal materials in the furnace by radiation and convection, so that they gradually heat up to the temperature required for forging.，is a popular Stepping bottom heating furnace，the main structure includes combustor, Radiation chamber, furnace chamber, recovery of waste heat, Radiation chamber and so on。

1、Brief introduction of Stepping bottom heating furnace

Stepping bottom heating furnaceIt is a kind of equipment that uses natural gas as fuel to heat metal materials and make them reach forging temperature.。

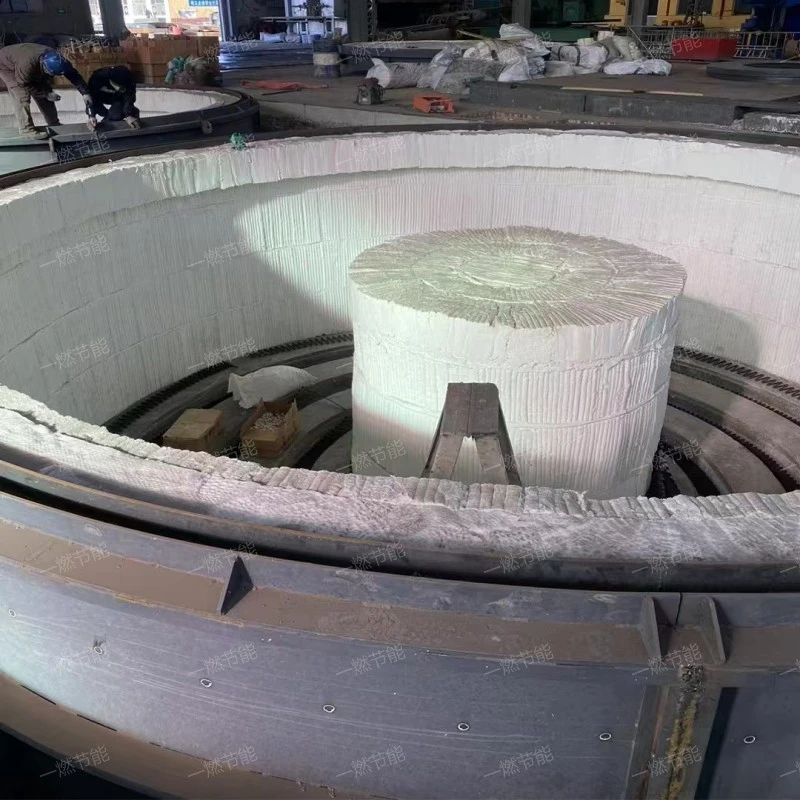

Stepping bottom heating furnace

2、Stepping bottom heating furnace structure

The Stepping bottom heating furnace structure is introduced as follows:

1. convection chamber

The material is heated by convection heat transfer of high temperature flue gas discharged from the radiation chamber. Flue gas washes the tube wall of the furnace tube at a high speed to carry out effective convection heat transfer, and its heat load accounts for about 20%-30% of the whole furnace. The convection chamber is generally arranged above the radiation chamber, and some are placed on the ground alone. In order to improve the heat transfer effect, nail head tubes or finned tubes are often used in furnace tubes.

2. furnace chamber

A space for holding metallic materials for heating.

3. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

4. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

5. Radiation chamber

The heat load of the main place for Stepping bottom heating furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

Stepping bottom heating furnace

3、Stepping bottom heating furnace performance advantage

The advantages of Stepping bottom heating furnace are as follows:

1. clean energy

Natural gas, as a clean energy source, produces less waste gas and dust after combustion, which has little pollution to the environment. This will help reduce industrial emissions and improve the atmospheric environment.

2. Multiple fuel options

Although the Stepping bottom heating furnace mainly uses natural gas as fuel, some equipment also supports other types of gas or liquid fuel, which has strong fuel adaptability.

3. Intelligent control

The Stepping bottom heating furnace is usually equipped with an intelligent control system, which can automatically adjust the parameters such as gas supply and air flow according to the heating demand, and realize accurate control of the temperature and atmosphere in the furnace.

4. Wide application range

The Stepping bottom heating furnace is suitable for forging and heating of various metal materials, including steel, aluminum and copper. At the same time, it can also be used in metal heat treatment, tempering and other technological processes.

5. easy to operate

The operation interface of the Stepping bottom heating furnace is friendly and easy for operators to use. At the same time, the equipment also has the function of fault diagnosis and alarm, which can find and deal with abnormal situations in time.

Stepping bottom heating furnace

4、Stepping bottom heating furnace field real shot

On-site aerial photography of Stepping bottom heating furnace。

Stepping bottom heating furnace

As you can see from the live video.，One-combustion energy saving the main features are Easy to control, Easy to maintain, Stable and reliable, energy saving and environmental protection and energy-efficient。

5、On-site real shot of Stepping bottom heating furnace

A variety of series of Stepping bottom heating furnace pictures are displayed, with exquisite design, reliable quality and trustworthiness.。

Stepping bottom heating furnace

Note: All the pictures in this article were taken by One-combustion energy saving manufacturer.。

6、Stepping bottom heating furnace working site

One-combustion energy saving provides customers with on-site high-definition video, fully demonstrates the advantages of on-site Stepping bottom heating furnacet operation, and helps customers to deeply understand the product production process and production site, and gain favorable comments and recognition from customers.。

Stepping bottom heating furnace

As you can see from the live video.，Shandong yiran energy-saving environment protection co., ltd the product looks beautiful.。

Stepping bottom heating furnaceSimple structure and advanced technology.，it mainly includes convection chamber, ventilation system, furnace chamber, combustor and ventilation system，usually used in electron, surface treatment, metallurgy, automobile, Machinery manufacturing and other fields。
