Introduction to Environmentally friendly heat treatment chain furnace, how much is the price of the Forging furnace?

Environmentally friendly heat treatment chain furnaceIt is an important heating equipment before metal forging. It uses natural gas as fuel to heat metal materials through high-temperature flame and smoke generated by combustion to meet the requirements of forging process.，Widely used in Metal tempering, Metal forging heating, Improve production efficiency, Metal heat treatment and Energy conservation and environmental protection，multifunctional, with functions such as normalizing, temper, Forging heating, quench and Casting heating，it has the characteristics of Stable and reliable, energy-efficient, Strong adaptability, Easy to maintain and Easy to maintain，the product looks atmospheric.。

1、Brief introduction of Environmentally friendly heat treatment chain furnace

Environmentally friendly heat treatment chain furnaceIt is an efficient, energy-saving and environment-friendly metal heating device.，is designed by One-combustion energy saving with advanced technology。

Environmentally friendly heat treatment chain furnace

2、Introduction of advantages of Environmentally friendly heat treatment chain furnace

Environmentally friendly heat treatment chain furnaces have the following advantages.

1. Uniform heating

The Environmentally friendly heat treatment chain furnace adopts regenerative combustion system or advanced burner design, which can realize uniform distribution of temperature in the furnace, ensure uniform heating of metal materials and improve product quality.

2. Efficient combustion

The Environmentally friendly heat treatment chain furnace adopts advanced combustion technology and control system, which can realize full combustion of natural gas and improve combustion efficiency. At the same time, some equipment is also equipped with waste heat recovery system, which can further recycle the waste heat in exhaust smoke and improve energy utilization efficiency.

3. Multiple fuel options

Although the Environmentally friendly heat treatment chain furnace mainly uses natural gas as fuel, some equipment also supports other types of gas or liquid fuel, which has strong fuel adaptability.

4. Rapid temperature rise

The Environmentally friendly heat treatment chain furnace can heat the metal material to the required temperature in a short time, which improves the production efficiency.

5. clean energy

Natural gas, as a clean energy source, produces less waste gas and dust after combustion, which has little pollution to the environment. This will help reduce industrial emissions and improve the atmospheric environment.

Environmentally friendly heat treatment chain furnace

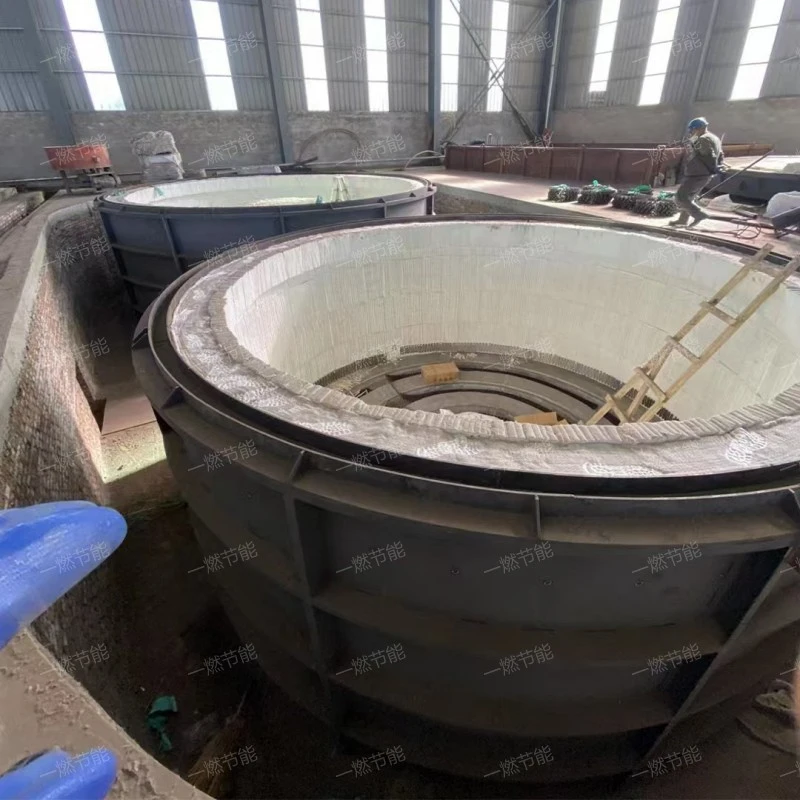

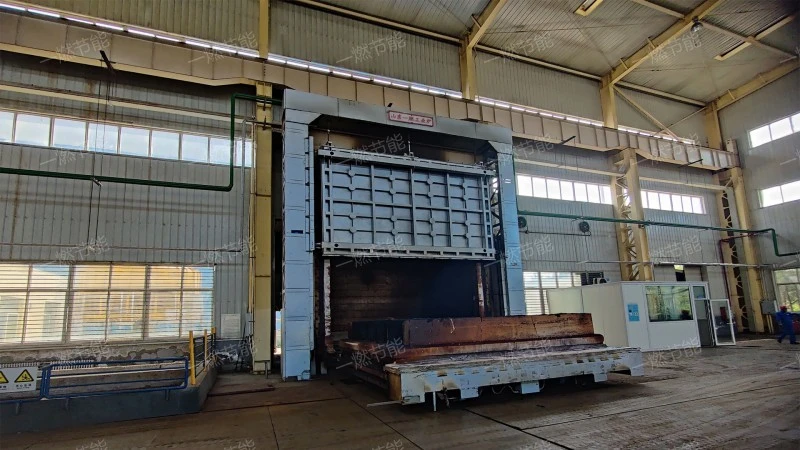

3、On-site real shot of Environmentally friendly heat treatment chain furnace

The finished products of the Environmentally friendly heat treatment chain furnace factory are actually photographed, and all kinds of specifications and models are photographed in all directions. The design is exquisite and the quality is reliable. Don't forget to make an appointment to visit the factory by phone.。

Environmentally friendly heat treatment chain furnace

Note: All the pictures in this article were taken by One-combustion energy saving manufacturer.。

4、Environmentally friendly heat treatment chain furnace structure composition

The Environmentally friendly heat treatment chain furnace has the following structure

1. convection chamber

The material is heated by convection heat transfer of high temperature flue gas discharged from the radiation chamber. Flue gas washes the tube wall of the furnace tube at a high speed to carry out effective convection heat transfer, and its heat load accounts for about 20%-30% of the whole furnace. The convection chamber is generally arranged above the radiation chamber, and some are placed on the ground alone. In order to improve the heat transfer effect, nail head tubes or finned tubes are often used in furnace tubes.

2. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

3. Radiation chamber

The heat load of the main place for Environmentally friendly heat treatment chain furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

4. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

5. Waste heat recovery system

Recover the waste heat in the exhaust gas of heating furnace to improve the energy utilization efficiency.

Environmentally friendly heat treatment chain furnace

5、Environmentally friendly heat treatment chain furnace application

Environmentally friendly heat treatment chain furnaces have the following purposes.

1. Metal tempering

By properly heating and cooling the metal material, the Environmentally friendly heat treatment chain furnace can realize the quenching and tempering treatment of the metal. This is helpful to adjust the hardness and toughness of metal to meet the needs of different workpieces.

2. Energy conservation and environmental protection

The Environmentally friendly heat treatment chain furnace uses clean energy as fuel, which has lower emissions and higher energy efficiency than traditional coal-fired or oil-fired stoves. This is helpful to reduce environmental pollution and realize green production.

3. Metal melting and casting

Although it is mainly used for forging heating, some types of Environmentally friendly heat treatment chain furnaces can also be used in metal melting and casting processes. This is especially suitable for melting and casting of small or special alloys.

4. Metal heat treatment

In addition to forging heating, Environmentally friendly heat treatment chain furnaces can also be used for metal heat treatment processes, such as annealing and tempering. These processes can improve the microstructure and properties of metal materials, and improve their service life and mechanical properties.

5. Improve production efficiency

The Environmentally friendly heat treatment chain furnace has the advantages of fast heating speed and accurate temperature control, which can improve production efficiency. This is especially important for mass-produced forging workshops.

Environmentally friendly heat treatment chain furnace

Environmentally friendly heat treatment chain furnaceit has the characteristics of Strong adaptability, energy saving and environmental protection, Stable and reliable, Easy to control and energy-efficient，is a popular Environmentally friendly heat treatment chain furnace，it is mainly composed of ventilation system, Radiation chamber, recovery of waste heat, furnace chamber and ventilation system，This productThe overall structural design is simple and novel.。
