What is a Multi station annealing industrial furnace? Introduction to the principle of forging furnace structure

Multi station annealing industrial furnaceIt is a kind of heating equipment using natural gas as fuel, which is mainly used to heat metal materials to the required forging temperature in a short time.，was developed and designed by One-combustion energy saving。The following is to introduce the Multi station annealing industrial furnace:

1、Brief introduction of Multi station annealing industrial furnace

Multi station annealing industrial furnaceIt is an efficient, energy-saving and environment-friendly metal heating device.。

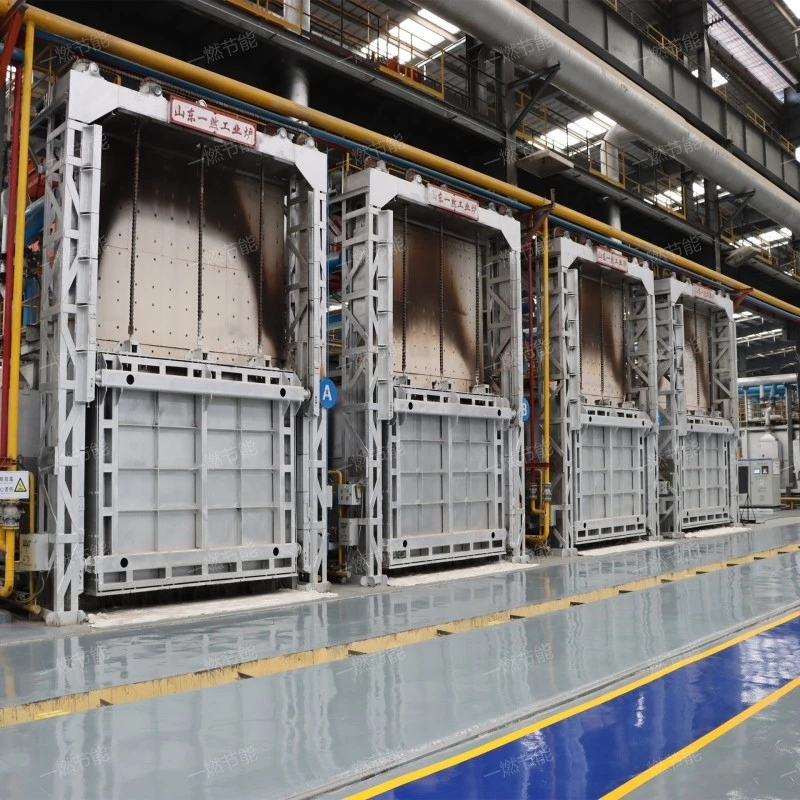

Multi station annealing industrial furnace

2、Functional advantages of Multi station annealing industrial furnace

Multi station annealing industrial furnaces have the following advantages.

1. Rapid temperature rise

The Multi station annealing industrial furnace can heat the metal material to the required temperature in a short time, which improves the production efficiency.

2. Wide application range

The Multi station annealing industrial furnace is suitable for forging and heating of various metal materials, including steel, aluminum and copper. At the same time, it can also be used in metal heat treatment, tempering and other technological processes.

3. easy to operate

The operation interface of the Multi station annealing industrial furnace is friendly and easy for operators to use. At the same time, the equipment also has the function of fault diagnosis and alarm, which can find and deal with abnormal situations in time.

4. Improve product quality

Because the Multi station annealing industrial furnace can realize uniform heating and precise control, it is helpful to improve the product quality and yield of metal materials.

5. clean energy

Natural gas, as a clean energy source, produces less waste gas and dust after combustion, which has little pollution to the environment. This will help reduce industrial emissions and improve the atmospheric environment.

Multi station annealing industrial furnace

3、Multi station annealing industrial furnace explanation video

You can buy Multi station annealing industrial furnace according to your needs and show you product videos.。

Multi station annealing industrial furnace

As you can see from the live video.，Shandong yiran energy-saving environment protection co., ltd the main features are Stable and reliable, Easy to control, Easy to maintain, Easy to maintain and Easy to control。

4、Multi station annealing industrial furnace structure composition

The Multi station annealing industrial furnace structure is introduced as follows:

1. furnace chamber

A space for holding metallic materials for heating.

2. Waste heat recovery system

Used to recover the exhaust heat of the heating furnace. There are two kinds of recovery methods, one is to recover by preheating combustion air, so that the recovered heat can return to the furnace again; The other is to use another recovery system to recover heat. The former is called air preheating mode, and the latter is usually called waste heat boiler mode.

3. convection chamber

The material is heated by convection heat transfer of high temperature flue gas discharged from the radiation chamber. Flue gas washes the tube wall of the furnace tube at a high speed to carry out effective convection heat transfer, and its heat load accounts for about 20%-30% of the whole furnace. The convection chamber is generally arranged above the radiation chamber, and some are placed on the ground alone. In order to improve the heat transfer effect, nail head tubes or finned tubes are often used in furnace tubes.

4. Radiation chamber

The heat load of the main place for Multi station annealing industrial furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

5. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

Multi station annealing industrial furnace

5、Multi station annealing industrial furnace use

The purpose of Multi station annealing industrial furnace is introduced as follows:

1. Metal heat treatment

In addition to forging heating, Multi station annealing industrial furnaces can also be used for metal heat treatment processes, such as annealing and tempering. These processes can improve the microstructure and properties of metal materials, and improve their service life and mechanical properties.

2. Metal tempering

By properly heating and cooling the metal material, the Multi station annealing industrial furnace can realize the quenching and tempering treatment of the metal. This is helpful to adjust the hardness and toughness of metal to meet the needs of different workpieces.

3. Metal melting and casting

Although it is mainly used for forging heating, some types of Multi station annealing industrial furnaces can also be used in metal melting and casting processes. This is especially suitable for melting and casting of small or special alloys.

4. Energy conservation and environmental protection

The Multi station annealing industrial furnace uses clean energy as fuel, which has lower emissions and higher energy efficiency than traditional coal-fired or oil-fired stoves. This is helpful to reduce environmental pollution and realize green production.

5. Metal forging heating

The Multi station annealing industrial furnace can heat the metal material to the temperature required for forging, improve its plasticity and fluidity, and thus facilitate forging. This is very important for the forging of various metal materials.

Multi station annealing industrial furnace

Multi station annealing industrial furnaceit is widely used inpetroleum,chemical industry,pharmacy,heat treatment,light industry and other industries，at work,Heat of combustion based on fuel. Fuel gas (such as natural gas, liquefied petroleum gas, etc.) is mixed with combustion-supporting air through the burner and burned to produce high-temperature flame and flue gas. These high-temperature flames and smoke exchange heat with metal materials in the furnace, so that they gradually heat up to the temperature required for forging.，It is mostly used in Metal forging heating, Improve production efficiency, Metal tempering, Metal melting and casting, Energy conservation and environmental protection, Metal melting and casting and so on。
