Introduction to Double door well furnace and Forging furnace structure principle

Double door well furnaceIt is an efficient, energy-saving and environment-friendly metal heating device.。

1、Brief introduction of Double door well furnace

Double door well furnaceIt is a kind of equipment which uses gas as fuel and is specially used for heating metal before forging.，It can improve the plasticity and fluidity of metal materials, reduce the difficulty and cost of forging, and improve product quality and production efficiency.、Uniform heating and precise control can be realized, so it is helpful to improve the product quality and yield of metal materials.、Efficient combustion and waste heat recovery system can significantly reduce energy consumption, thus reducing operating costs.、The use of clean and environmentally friendly natural gas as fuel effectively avoids the adverse effects of chemical reactions between impurities such as coal-fired furnaces and forgings during heating. At the same time, natural gas has high calorific value and high combustion temperature, and the combustion temperature can be further increased by preheating air and fuel. In addition, the gas forging heating furnace also has good heat loss control ability and intelligent control system, which can accurately adjust the ratio of air to natural gas, ensure full combustion of natural gas, and reduce mechanical incomplete combustion and chemical incomplete combustion.、The user interface is friendly, and the operator is easy to use. At the same time, the equipment also has the function of fault diagnosis and alarm, which can find and deal with abnormal situations in time.，is a Double door well furnace，Commonly used inMetal forging heating,Metal tempering,Metal melting and casting,Metal forging heating,Metal heat treatment and so on，support customization。

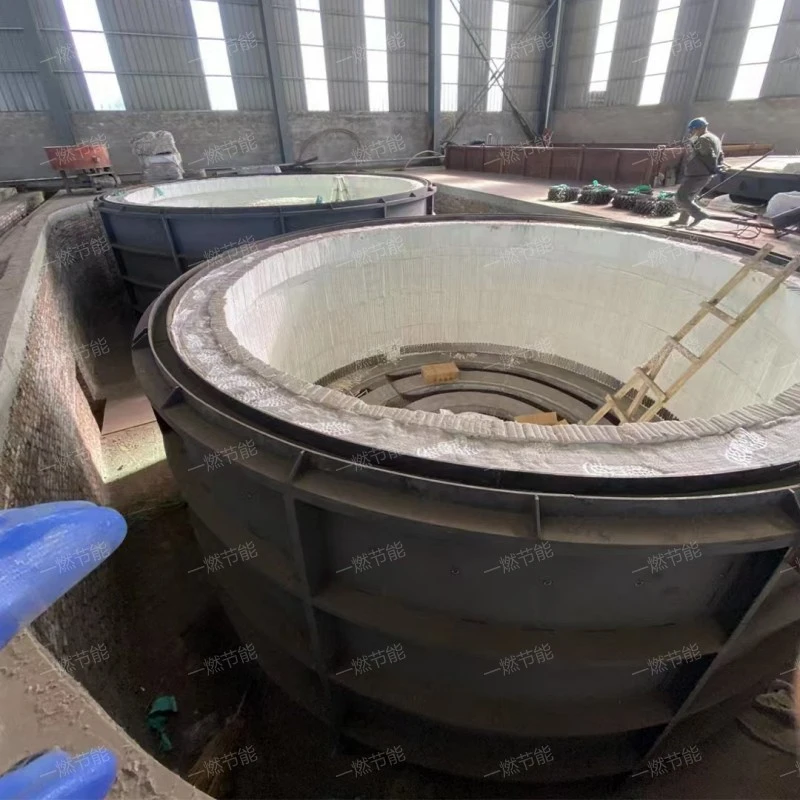

Double door well furnace

2、Introduction of Double door well furnace characteristics

Double door well furnace has the following characteristics

1. Easy to maintain

The structural design of the Double door well furnace is reasonable and easy to maintain, which reduces the operating cost and failure rate of the equipment.

2. Stable and reliable

The Double door well furnace has a stable combustion system and temperature control system, which can ensure the uniformity and stability of the temperature in the furnace, thus improving the quality and production efficiency of forged products.

3. Easy to control

The combustion system and ventilation system of the Double door well furnace can be adjusted as required to accurately control the temperature and atmosphere in the furnace and meet the heating requirements of different metal materials.

4. Strong adaptability

The Double door well furnace can be used for forging and heating of bar, round steel, square steel, steel plate and other metal materials, and has a wide range of applications.

5. energy saving and environmental protection

As a clean energy source, natural gas produces less pollutants after combustion, which is beneficial to environmental protection. At the same time, the application of waste heat recovery system further improves the energy utilization efficiency.

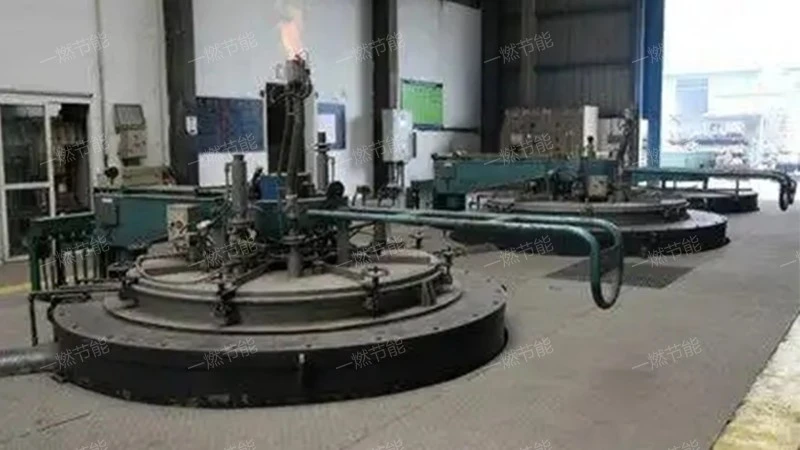

Double door well furnace

3、Double door well furnace function

Double door well furnacemultifunctional, with functions such as Forging heating, quench, temper, Forging heating and hardening and tempering，Natural gas is used as a heat source, resulting in less waste gas and smoke after combustion, and less pollution to the environment. This will help reduce industrial emissions and improve the atmospheric environment.、The user interface is friendly, and the operator is easy to use. At the same time, the equipment also has the function of fault diagnosis and alarm, which can find and deal with abnormal situations in time.、Usually equipped with intelligent control system, it can automatically adjust the parameters such as gas supply and air flow according to the heating demand, and realize accurate control of the temperature and atmosphere in the furnace.、Suitable for forging and heating of various metal materials, including steel, aluminum and copper. At the same time, it can also be used in metal heat treatment, tempering and other technological processes.、Adopting advanced combustion technology and materials, it has a long service life and low maintenance cost.，has been favored by more and more customers.。

Double door well furnace

4、Double door well furnace structure

The Double door well furnace has the following structure

1. convection chamber

The high-temperature flue gas discharged from the radiation chamber is used for convective heat transfer to further heat the metal materials.

2. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

3. Radiation chamber

The heat load of the main place for Double door well furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

4. furnace chamber

A space for holding metallic materials for heating.

5. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

Double door well furnace

5、Double door well furnace application

Double door well furnaces have the following purposes.

1. Improve production efficiency

The Double door well furnace has the advantages of fast heating speed and accurate temperature control, which can improve production efficiency. This is especially important for mass-produced forging workshops.

2. Metal forging heating

The Double door well furnace can heat the metal material to the temperature required for forging, improve its plasticity and fluidity, and thus facilitate forging. This is very important for the forging of various metal materials.

3. Metal heat treatment

In addition to forging heating, Double door well furnaces can also be used for metal heat treatment processes, such as annealing and tempering. These processes can improve the microstructure and properties of metal materials, and improve their service life and mechanical properties.

4. Metal tempering

By properly heating and cooling the metal material, the Double door well furnace can realize the quenching and tempering treatment of the metal. This is helpful to adjust the hardness and toughness of metal to meet the needs of different workpieces.

5. Metal melting and casting

Although it is mainly used for forging heating, some types of Double door well furnaces can also be used in metal melting and casting processes. This is especially suitable for melting and casting of small or special alloys.

Double door well furnace

Double door well furnaceenergy saving and environmental protection,Stable and reliable,energy-efficient,Strong adaptability,Easy to maintain，the advantage is Usually equipped with intelligent control system, it can automatically adjust the parameters such as gas supply and air flow according to the heating demand, and realize accurate control of the temperature and atmosphere in the furnace.、It has the advantages of high heating efficiency, high energy utilization, accurate temperature control, good environmental protection performance, simple operation and strong adaptability.、Natural gas is mainly used as fuel, but some equipment also supports other types of gas or liquid fuel, which has strong fuel adaptability.、Using regenerative combustion system or advanced burner design can realize the uniform distribution of temperature in the furnace, ensure the uniform heating of metal materials and improve product quality.、Efficient combustion and waste heat recovery system can significantly reduce energy consumption, thus reducing operating costs.。
