What is a Double door well type annealing furnace? Introduction to the Working Principle of forging furnace

Double door well type annealing furnaceIt is an important heating equipment before metal forging. It uses natural gas as fuel to heat metal materials through high-temperature flame and smoke generated by combustion to meet the requirements of forging process.，the advantage is The use of clean and environmentally friendly natural gas as fuel effectively avoids the adverse effects of chemical reactions between impurities such as coal-fired furnaces and forgings during heating. At the same time, natural gas has high calorific value and high combustion temperature, and the combustion temperature can be further increased by preheating air and fuel. In addition, the gas forging heating furnace also has good heat loss control ability and intelligent control system, which can accurately adjust the ratio of air to natural gas, ensure full combustion of natural gas, and reduce mechanical incomplete combustion and chemical incomplete combustion.、Adopting advanced combustion technology and control system can realize full combustion of natural gas and improve combustion efficiency. At the same time, some equipment is also equipped with waste heat recovery system, which can further recycle the waste heat in exhaust smoke and improve energy utilization efficiency.、The metal material can be heated to the required temperature in a short time, and the production efficiency is improved.、It can improve the plasticity and fluidity of metal materials, reduce the difficulty and cost of forging, and improve product quality and production efficiency.、Natural gas is mainly used as fuel, but some equipment also supports other types of gas or liquid fuel, which has strong fuel adaptability.。

1、Brief introduction of Double door well type annealing furnace

Double door well type annealing furnaceIt is a forging heating device using gas as fuel.，modern technology。

Double door well type annealing furnace

2、Double door well type annealing furnace function

Double door well type annealing furnaceit has the functions of Casting heating, normalizing, quench, hardening and tempering and anneal，it is usually composed of ventilation system, Radiation chamber, convection chamber, combustor and recovery of waste heat，This Double door well type annealing furnaceThe overall structural design is simple, diverse and beautiful.，it can be used in material, Machinery manufacturing, shipping, machinery, heat treatment and other industries，the product looks beautiful.，Widely used in Energy conservation and environmental protection, Improve production efficiency, Metal tempering, Metal melting and casting and Metal tempering。

Double door well type annealing furnace

3、Advantages of Double door well type annealing furnace principle

Double door well type annealing furnaceat work,The high-temperature flame and flue gas generated when the fuel burns in the furnace are used as heat sources to heat the medium flowing in the tube to reach the specified process temperature. Fuel is ejected from the burner and burned, resulting in high-temperature flame and high-temperature flue gas. The high-temperature flame transfers heat to the furnace tube in the radiation chamber through radiation, and then to the medium in the furnace tube. The high-temperature flue gas enters the convection chamber of the heating furnace upward due to the suction force of the chimney or the action of the induced draft fan, and the heat is transferred to the furnace tube in the convection chamber by convection, and then to the medium in the furnace tube.，was developed and designed by One-combustion energy saving。

Double door well type annealing furnace

4、Structural advantages of Double door well type annealing furnace

The Double door well type annealing furnace has the following structure

1. Radiation chamber

The heat load of the main place for Double door well type annealing furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

2. Waste heat recovery system

Used to recover the exhaust heat of the heating furnace. There are two kinds of recovery methods, one is to recover by preheating combustion air, so that the recovered heat can return to the furnace again; The other is to use another recovery system to recover heat. The former is called air preheating mode, and the latter is usually called waste heat boiler mode.

3. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

4. convection chamber

The material is heated by convection heat transfer of high temperature flue gas discharged from the radiation chamber. Flue gas washes the tube wall of the furnace tube at a high speed to carry out effective convection heat transfer, and its heat load accounts for about 20%-30% of the whole furnace. The convection chamber is generally arranged above the radiation chamber, and some are placed on the ground alone. In order to improve the heat transfer effect, nail head tubes or finned tubes are often used in furnace tubes.

5. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

Double door well type annealing furnace

5、Double door well type annealing furnace characteristics

The Double door well type annealing furnace features are as follows:

1. Efficient heating

The Double door well type annealing furnace can heat the metal to the required forging temperature in a very short time, reducing the loss caused by the oxidation of the metal.

2. Easy to maintain

The structural design of the Double door well type annealing furnace is reasonable and easy to maintain, which reduces the operating cost and failure rate of the equipment.

3. Easy to control

By adjusting the burner and ventilation system, the temperature and atmosphere in the furnace can be accurately controlled to meet the heating requirements of different metal materials.

4. Stable and reliable

The Double door well type annealing furnace has a stable combustion system and temperature control system, which can ensure the uniformity and stability of the temperature in the furnace, thus improving the quality and production efficiency of forged products.

5. Strong adaptability

The Double door well type annealing furnace is suitable for forging and heating of various metal materials and has a wide range of applications.

Double door well type annealing furnace

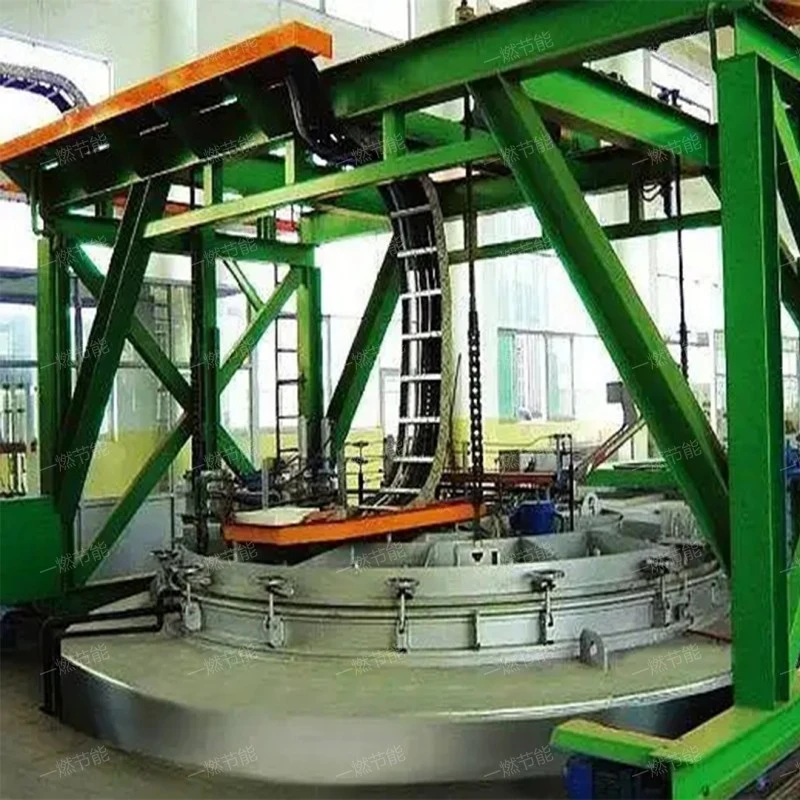

6、Double door well type annealing furnace HD picture real shot

High-definition picture shooting for various Double door well type annealing furnace, all-round display, exquisite appearance, excellent quality and trustworthy.。

Double door well type annealing furnace

Note: All the pictures in this article were taken by One-combustion energy saving manufacturer.。

Double door well type annealing furnacethe advantage is Uniform heating and precise control can be realized, so it is helpful to improve the product quality and yield of metal materials.、It has the advantages of high heating efficiency, high energy utilization, accurate temperature control, good environmental protection performance, simple operation and strong adaptability.、The use of clean and environmentally friendly natural gas as fuel effectively avoids the adverse effects of chemical reactions between impurities such as coal-fired furnaces and forgings during heating. At the same time, natural gas has high calorific value and high combustion temperature, and the combustion temperature can be further increased by preheating air and fuel. In addition, the gas forging heating furnace also has good heat loss control ability and intelligent control system, which can accurately adjust the ratio of air to natural gas, ensure full combustion of natural gas, and reduce mechanical incomplete combustion and chemical incomplete combustion.、The user interface is friendly, and the operator is easy to use. At the same time, the equipment also has the function of fault diagnosis and alarm, which can find and deal with abnormal situations in time.、It can improve the plasticity and fluidity of metal materials, reduce the difficulty and cost of forging, and improve product quality and production efficiency.，multifunctional, with functions such as temper, heat treatment, normalizing, anneal and hardening and tempering。
