Introduction to Side in side out heating furnace and Forging furnace structure principle

Side in side out heating furnaceIt is a forging heating device using gas as fuel.，it has the characteristics of Stable and reliable, Easy to control, Stable and reliable, Easy to control and energy-efficient，the product looks atmospheric.，in the course of work,Heat of combustion based on fuel. Natural gas is sprayed from the burner, mixed with combustion-supporting air and burned to produce high-temperature flame and smoke. These high-temperature flames and smoke transfer heat to the metal materials in the furnace by radiation and convection, so that they gradually heat up to the temperature required for forging.，Simple structure and advanced technology.，it is usually composed of furnace chamber, convection chamber, ventilation system, ventilation system and furnace chamber。

1、Brief introduction of Side in side out heating furnace

Side in side out heating furnaceIt is a kind of equipment that uses natural gas as fuel to heat metal materials and make them reach forging temperature.。

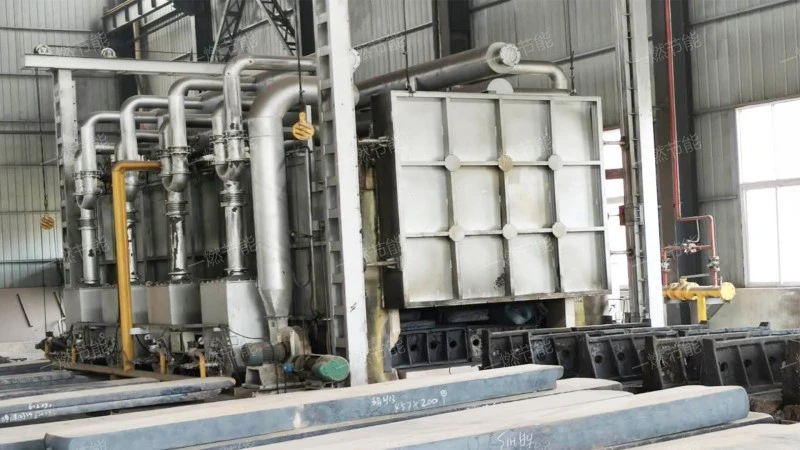

Side in side out heating furnace

2、Side in side out heating furnace picture

Details of One-combustion energy saving Side in side out heating furnace,the product looks beautiful.。

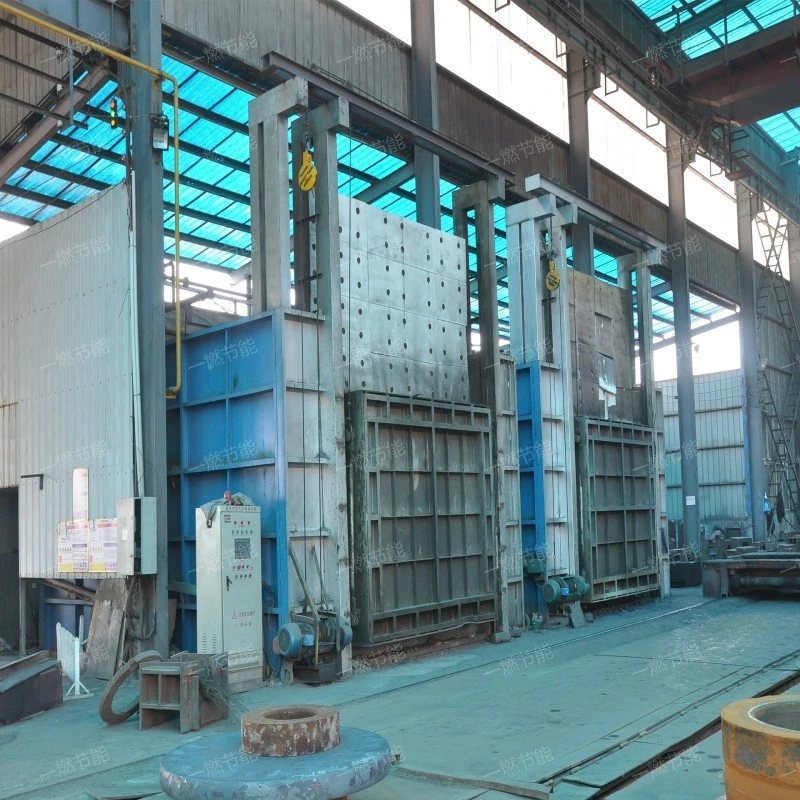

Side in side out heating furnace

Note: All the pictures in this article were taken by One-combustion energy saving manufacturer.。

3、Side in side out heating furnace application

Side in side out heating furnaces have the following purposes.

1. Metal heat treatment

In addition to forging heating, Side in side out heating furnaces can also be used for metal heat treatment processes, such as annealing and tempering. These processes can improve the microstructure and properties of metal materials, and improve their service life and mechanical properties.

2. Improve production efficiency

The Side in side out heating furnace has the advantages of fast heating speed and accurate temperature control, which can improve production efficiency. This is especially important for mass-produced forging workshops.

3. Energy conservation and environmental protection

The Side in side out heating furnace uses clean energy as fuel, which has lower emissions and higher energy efficiency than traditional coal-fired or oil-fired stoves. This is helpful to reduce environmental pollution and realize green production.

4. Metal forging heating

The Side in side out heating furnace can heat the metal material to the temperature required for forging, improve its plasticity and fluidity, and thus facilitate forging. This is very important for the forging of various metal materials.

5. Improve production efficiency

The Side in side out heating furnace has the advantages of fast heating speed and accurate temperature control, which can improve production efficiency. This is especially important for mass-produced forging workshops.

Side in side out heating furnace

4、Side in side out heating furnace structure composition

The Side in side out heating furnace has the following structure

1. convection chamber

The material is heated by convection heat transfer of high temperature flue gas discharged from the radiation chamber. Flue gas washes the tube wall of the furnace tube at a high speed to carry out effective convection heat transfer, and its heat load accounts for about 20%-30% of the whole furnace. The convection chamber is generally arranged above the radiation chamber, and some are placed on the ground alone. In order to improve the heat transfer effect, nail head tubes or finned tubes are often used in furnace tubes.

2. Waste heat recovery system

Used to recover the exhaust heat of the heating furnace. There are two kinds of recovery methods, one is to recover by preheating combustion air, so that the recovered heat can return to the furnace again; The other is to use another recovery system to recover heat. The former is called air preheating mode, and the latter is usually called waste heat boiler mode.

3. Radiation chamber

The heat load of the main place for Side in side out heating furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

4. furnace chamber

A space for holding metallic materials for heating.

5. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

Side in side out heating furnace

5、How much is the Side in side out heating furnace?

The Side in side out heating furnace price is introduced as follows:

1. sales mode

One-combustion energy saving Side in side out heating furnace manufacturer is a large enterprise specializing in the production and manufacture of Side in side out heating furnace, the manufacturer produces and sells products directly to customers, without the influence of the price difference between middlemen. The market price of the manufacturer's products is the ex-factory price, and the Side in side out heating furnace price is also low.

2. product function

The more functions a product has, the higher its manufacturing cost, so that the product can be used by customers as much as possible, which can create more useful value for customers, so the price will be higher.

3. product model

The price of Side in side out heating furnace mainly depends on its different specifications. The products with larger specifications will have higher relative products and bring more benefits to customers.

4. service

There is a close relationship between service and price. High-quality service can not only avoid all worries in the process of product use, but also improve the overall strength and comprehensive credibility of manufacturers. In order to improve the service quality, One-combustion energy saving Side in side out heating furnace manufacturers provide comprehensive services for customers and products before, during and after sale, and at the same time make the price as favorable as possible to new and old customers, so that the Side in side out heating furnace price can meet the purchasing needs of customers.

5. company strength

At present, there are many manufacturers of products on the market, some of which belong to direct selling manufacturers and some belong to middlemen. Direct selling manufacturers will cost less than middlemen, so the quotation for products will be lower. Therefore, it is recommended that customers buy products from direct selling manufacturers of Side in side out heating furnace. In addition, even direct selling manufacturers have different capital status, strength level and technology, and the quotation for Side in side out heating furnace will be different.

Side in side out heating furnace

6、How to choose the right product manufacturer?

Choosing a suitable Side in side out heating furnace manufacturer requires comprehensive consideration of many aspects. First of all, we should examine the strength of manufacturers, including production capacity, R&D team and industry experience. Strong manufacturers can better ensure product supply and innovation ability. Secondly, product quality is the key, and it is evaluated by product certification, material selection and manufacturing process to ensure the durability of products. Product performance can not be ignored, so we should choose manufacturers with matching technical parameters, rich types and customized services according to actual needs. After-sales service is equally important. Professional and timely service team, perfect after-sales content and extensive service network can make users worry about nothing. In addition, market reputation is also an important reference. We can understand the reputation and status of manufacturers through customer evaluation, industry reputation and award-winning honor. Finally, it is necessary to analyze the price and cost performance, and on the premise of ensuring the quality and performance, choose a manufacturer with reasonable price and high cost performance, so as to purchase Side in side out heating furnace products that meet the demand and have good cost performance.。

One-combustion energy saving

Side in side out heating furnaceis a kind of high quality and low price Side in side out heating furnace，the main structure includes Radiation chamber, combustor, recovery of waste heat, convection chamber and Radiation chamber。
