What is a Multi functional chamber heating furnace? Introduction to the principle of heating furnace structure

Multi functional chamber heating furnaceIt is a kind of equipment which uses gas as fuel and is specially used for heating metal before forging.，at runtime,Heat of combustion based on fuel. Natural gas is sprayed from the burner, mixed with combustion-supporting air and burned to produce high-temperature flame and smoke. These high-temperature flames and smoke transfer heat to the metal materials in the furnace by radiation and convection, so that they gradually heat up to the temperature required for forging.。

1、Brief introduction of Multi functional chamber heating furnace

Multi functional chamber heating furnaceIt is a forging heating device using gas as fuel.，Widely used in Improve production efficiency, Improve production efficiency, Energy conservation and environmental protection, Metal heat treatment and Metal melting and casting，features include energy-efficient, Easy to control, energy saving and environmental protection, energy-efficient and Easy to maintain，it is an ideal choice for customers to buy Multi functional chamber heating furnace。

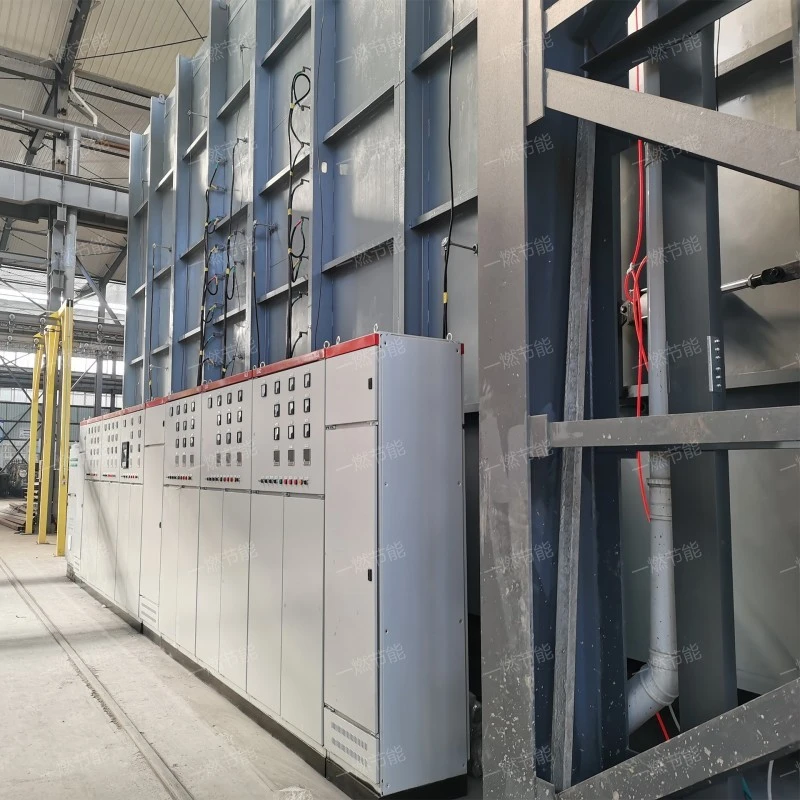

Multi functional chamber heating furnace

2、Multi functional chamber heating furnace HD picture real shot

A high-definition picture list of Multi functional chamber heating furnace is available for our customers to visit. The physical visit can be made to the factory. The address of the visit is Jinan, and the time can be reserved in advance. The manufacturer has a special person to receive it.。

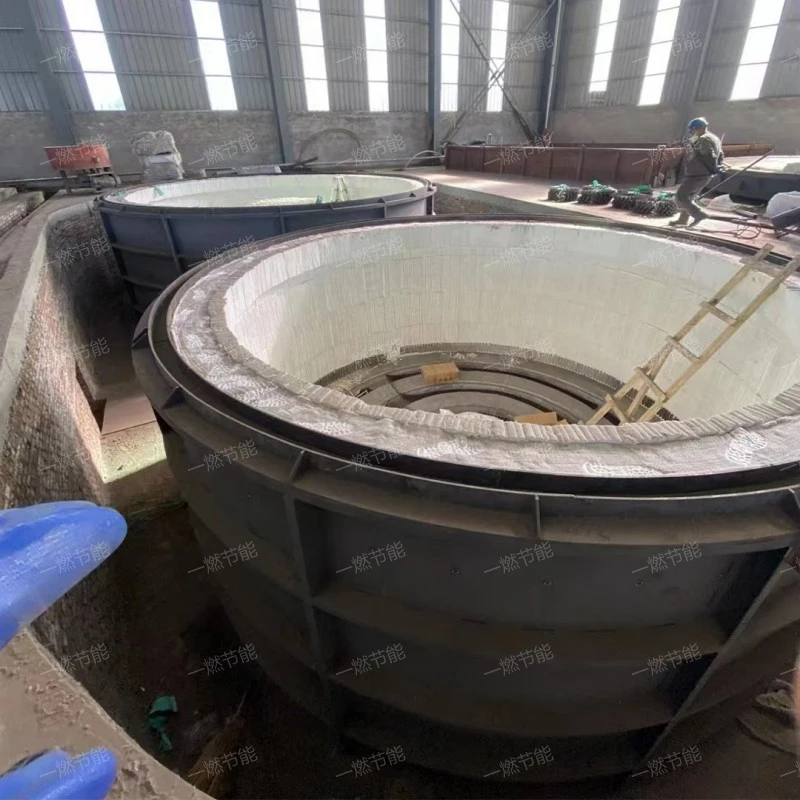

Multi functional chamber heating furnace

Note: All the pictures in this article were taken by One-combustion energy saving manufacturer.。

3、Advantages of Multi functional chamber heating furnace principle

Multi functional chamber heating furnacethe principle is simple.Heat of combustion based on fuel. Natural gas is sprayed from the burner, mixed with combustion-supporting air and burned to produce high-temperature flame and smoke. These high-temperature flames and smoke transfer heat to the metal materials in the furnace by radiation and convection, so that they gradually heat up to the temperature required for forging.，the product looks beautiful.，the advantage is The metal material can be heated to the required temperature in a short time, and the production efficiency is improved.、It has the advantages of high heating efficiency, high energy utilization, accurate temperature control, good environmental protection performance, simple operation and strong adaptability.、Suitable for forging and heating of various metal materials, including steel, aluminum and copper. At the same time, it can also be used in metal heat treatment, tempering and other technological processes.、Natural gas is used as a heat source, resulting in less waste gas and smoke after combustion, and less pollution to the environment. This will help reduce industrial emissions and improve the atmospheric environment.、Uniform heating and precise control can be realized, so it is helpful to improve the product quality and yield of metal materials.，can be customized according to user's needs.。

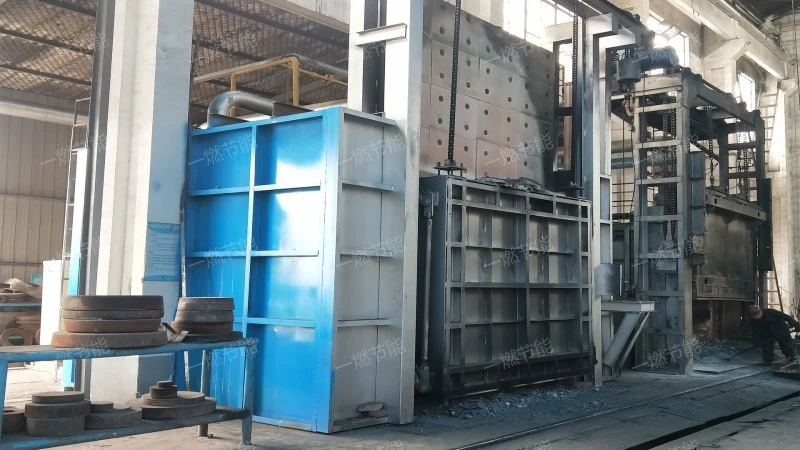

Multi functional chamber heating furnace

4、Structural characteristics of Multi functional chamber heating furnace

The Multi functional chamber heating furnace has the following structure

1. Waste heat recovery system

Used to recover the exhaust heat of the heating furnace. There are two kinds of recovery methods, one is to recover by preheating combustion air, so that the recovered heat can return to the furnace again; The other is to use another recovery system to recover heat. The former is called air preheating mode, and the latter is usually called waste heat boiler mode.

2. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

3. Waste heat recovery system

Recover the waste heat in the exhaust gas of heating furnace to improve the energy utilization efficiency.

4. convection chamber

The material is heated by convection heat transfer of high temperature flue gas discharged from the radiation chamber. Flue gas washes the tube wall of the furnace tube at a high speed to carry out effective convection heat transfer, and its heat load accounts for about 20%-30% of the whole furnace. The convection chamber is generally arranged above the radiation chamber, and some are placed on the ground alone. In order to improve the heat transfer effect, nail head tubes or finned tubes are often used in furnace tubes.

5. Radiation chamber

The heat load of the main place for Multi functional chamber heating furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

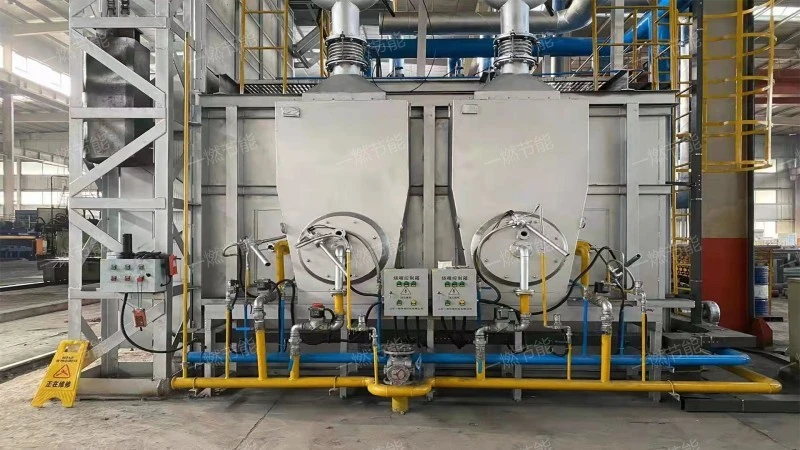

Multi functional chamber heating furnace

5、Multi functional chamber heating furnace function

Multi functional chamber heating furnaceit has the functions of Casting heating, temper, anneal, quench and anneal，is carefully developed by One-combustion energy saving combined with advanced technology。

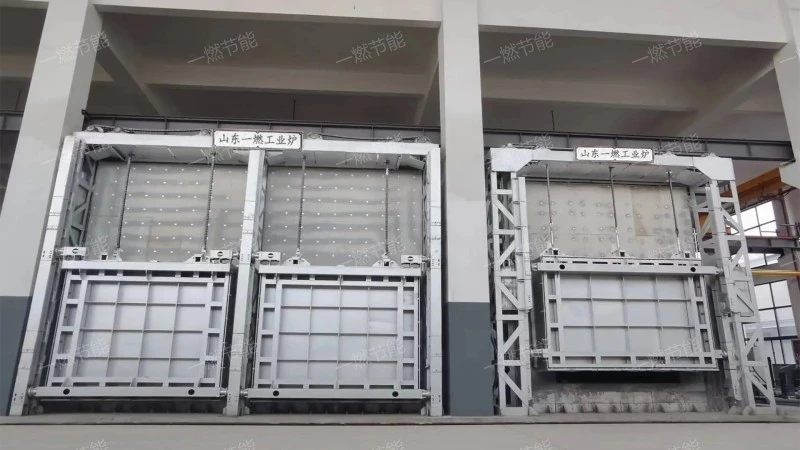

Multi functional chamber heating furnace

6、Why choose One-combustion energy saving?

Choosing a suitable Multi functional chamber heating furnace manufacturer requires comprehensive consideration of many aspects. First of all, we should examine the strength of manufacturers, including production capacity, R&D team and industry experience. Strong manufacturers can better ensure product supply and innovation ability. Secondly, product quality is the key, and it is evaluated by product certification, material selection and manufacturing process to ensure the durability of products. Product performance can not be ignored, so we should choose manufacturers with matching technical parameters, rich types and customized services according to actual needs. After-sales service is equally important. Professional and timely service team, perfect after-sales content and extensive service network can make users worry about nothing. In addition, market reputation is also an important reference. We can understand the reputation and status of manufacturers through customer evaluation, industry reputation and award-winning honor. Finally, it is necessary to analyze the price and cost performance, and on the premise of ensuring the quality and performance, choose a manufacturer with reasonable price and high cost performance, so as to purchase Multi functional chamber heating furnace products that meet the demand and have good cost performance.。

One-combustion energy saving

Multi functional chamber heating furnaceit is widely used in shipping, Household necessities, light industry, metallurgy and surface treatment，Mainly used forMetal tempering,Metal forging heating,Improve production efficiency,Metal forging heating andMetal tempering。
