What is a Well type insulation furnace? How much is the price of the heating furnace?

Well type insulation furnaceIt is a forging heating device using gas as fuel.，be loved by our customers.。

1、Brief introduction of Well type insulation furnace

Well type insulation furnaceIt is a kind of heating equipment using natural gas as fuel, which is mainly used to heat metal materials to the required forging temperature in a short time.，widely used in metallurgy, Machinery manufacturing, surface treatment, building materials, heat treatment and other fields，The structural design is simple, novel and special.，it is mainly composed of combustor, recovery of waste heat, Radiation chamber, convection chamber and ventilation system，can be customized according to user's needs.。

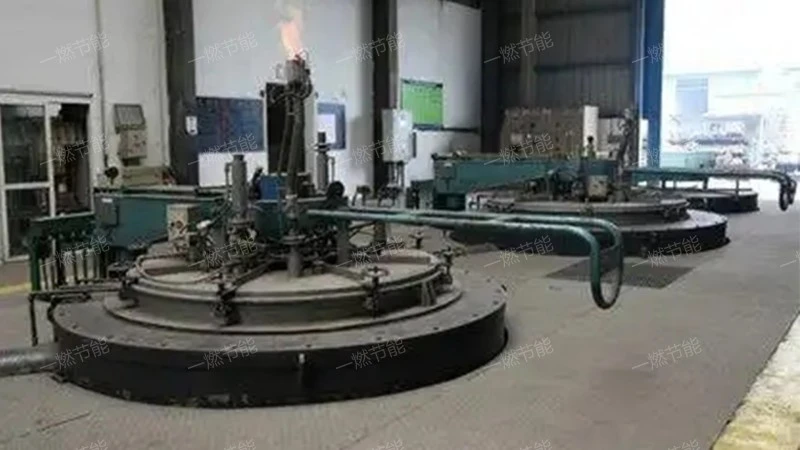

Well type insulation furnace

2、Well type insulation furnace HD picture

HD picture of One-combustion energy saving Well type insulation furnace,energy saving and environmental protection。

Well type insulation furnace

Note: All the pictures in this article were taken by One-combustion energy saving manufacturer.。

3、Well type insulation furnace performance advantage

The advantages of Well type insulation furnace are as follows:

1. clean energy

Natural gas, as a clean energy source, produces less waste gas and dust after combustion, which has little pollution to the environment. This will help reduce industrial emissions and improve the atmospheric environment.

2. easy to operate

The operation interface of the Well type insulation furnace is friendly and easy for operators to use. At the same time, the equipment also has the function of fault diagnosis and alarm, which can find and deal with abnormal situations in time.

3. Multiple fuel options

Although the Well type insulation furnace mainly uses natural gas as fuel, some equipment also supports other types of gas or liquid fuel, which has strong fuel adaptability.

4. Uniform heating

The Well type insulation furnace adopts regenerative combustion system or advanced burner design, which can realize uniform distribution of temperature in the furnace, ensure uniform heating of metal materials and improve product quality.

5. Intelligent control

The Well type insulation furnace is usually equipped with an intelligent control system, which can automatically adjust the parameters such as gas supply and air flow according to the heating demand, and realize accurate control of the temperature and atmosphere in the furnace.

Well type insulation furnace

4、Structural characteristics of Well type insulation furnace

The Well type insulation furnace structure is introduced as follows:

1. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

2. convection chamber

The material is heated by convection heat transfer of high temperature flue gas discharged from the radiation chamber. Flue gas washes the tube wall of the furnace tube at a high speed to carry out effective convection heat transfer, and its heat load accounts for about 20%-30% of the whole furnace. The convection chamber is generally arranged above the radiation chamber, and some are placed on the ground alone. In order to improve the heat transfer effect, nail head tubes or finned tubes are often used in furnace tubes.

3. furnace chamber

A space for holding metallic materials for heating.

4. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

5. Waste heat recovery system

Used to recover the exhaust heat of the heating furnace. There are two kinds of recovery methods, one is to recover by preheating combustion air, so that the recovered heat can return to the furnace again; The other is to use another recovery system to recover heat. The former is called air preheating mode, and the latter is usually called waste heat boiler mode.

Well type insulation furnace

5、Well type insulation furnace principle

Well type insulation furnaceat the start of the operation,Heat of combustion based on fuel. Natural gas is sprayed from the burner, mixed with combustion-supporting air and burned to produce high-temperature flame and smoke. These high-temperature flames and smoke transfer heat to the metal materials in the furnace by radiation and convection, so that they gradually heat up to the temperature required for forging.，is based on One-combustion energy saving is an advanced Well type insulation furnace developed by our company in combination with the actual situation of the industry。

Well type insulation furnace

Well type insulation furnacethe advantage is Usually equipped with intelligent control system, it can automatically adjust the parameters such as gas supply and air flow according to the heating demand, and realize accurate control of the temperature and atmosphere in the furnace.、The metal material can be heated to the required temperature in a short time, and the production efficiency is improved.、Natural gas is used as a heat source, resulting in less waste gas and smoke after combustion, and less pollution to the environment. This will help reduce industrial emissions and improve the atmospheric environment.、Natural gas is mainly used as fuel, but some equipment also supports other types of gas or liquid fuel, which has strong fuel adaptability.、The use of clean and environmentally friendly natural gas as fuel effectively avoids the adverse effects of chemical reactions between impurities such as coal-fired furnaces and forgings during heating. At the same time, natural gas has high calorific value and high combustion temperature, and the combustion temperature can be further increased by preheating air and fuel. In addition, the gas forging heating furnace also has good heat loss control ability and intelligent control system, which can accurately adjust the ratio of air to natural gas, ensure full combustion of natural gas, and reduce mechanical incomplete combustion and chemical incomplete combustion.，It is a kind of equipment that uses natural gas as fuel to heat metal materials and make them reach forging temperature.。
