What is a Square Well Heat Treatment Furnace? Forging furnace specifications, models, and parameters

Square Well Heat Treatment FurnaceIt is a kind of heating equipment using natural gas as fuel, which is mainly used to heat metal materials to the required forging temperature in a short time.，is a common Square Well Heat Treatment Furnace。

1、Brief introduction of Square Well Heat Treatment Furnace

Square Well Heat Treatment FurnaceIt is a forging heating device using gas as fuel.，it has the characteristics of energy saving and environmental protection, Easy to maintain, Stable and reliable, Strong adaptability and Easy to control，the advantage is Uniform heating and precise control can be realized, so it is helpful to improve the product quality and yield of metal materials.、Using regenerative combustion system or advanced burner design can realize the uniform distribution of temperature in the furnace, ensure the uniform heating of metal materials and improve product quality.、Usually equipped with intelligent control system, it can automatically adjust the parameters such as gas supply and air flow according to the heating demand, and realize accurate control of the temperature and atmosphere in the furnace.、Natural gas is used as a heat source, resulting in less waste gas and smoke after combustion, and less pollution to the environment. This will help reduce industrial emissions and improve the atmospheric environment.、It can improve the plasticity and fluidity of metal materials, reduce the difficulty and cost of forging, and improve product quality and production efficiency.。

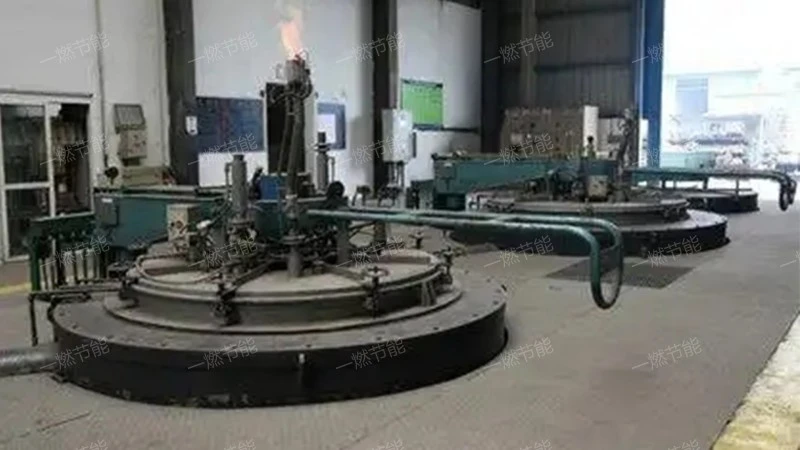

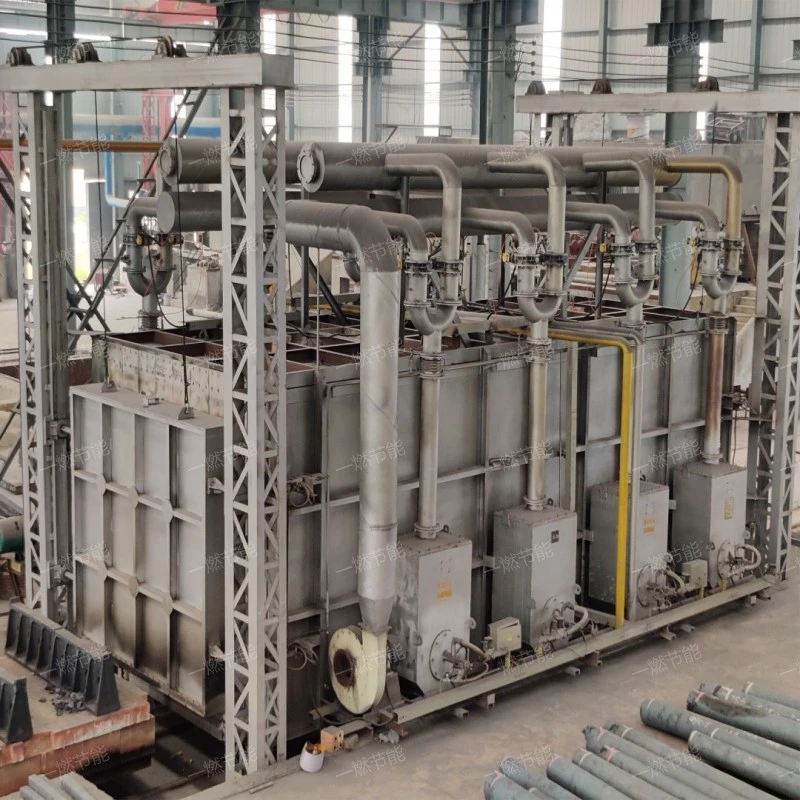

Square Well Heat Treatment Furnace

2、Functional advantages of Square Well Heat Treatment Furnace

Square Well Heat Treatment Furnaces have the following advantages.

1. Efficient combustion

The Square Well Heat Treatment Furnace adopts advanced combustion technology and control system, which can realize full combustion of natural gas and improve combustion efficiency. At the same time, some equipment is also equipped with waste heat recovery system, which can further recycle the waste heat in exhaust smoke and improve energy utilization efficiency.

2. Improve product quality

Because the Square Well Heat Treatment Furnace can realize uniform heating and precise control, it is helpful to improve the product quality and yield of metal materials.

3. Rapid temperature rise

The Square Well Heat Treatment Furnace can heat the metal material to the required temperature in a short time, which improves the production efficiency.

4. Uniform heating

The Square Well Heat Treatment Furnace adopts regenerative combustion system or advanced burner design, which can realize uniform distribution of temperature in the furnace, ensure uniform heating of metal materials and improve product quality.

5. Reduce operating costs

The efficient combustion and waste heat recovery system of the Square Well Heat Treatment Furnace can significantly reduce energy consumption, thus reducing operating costs.

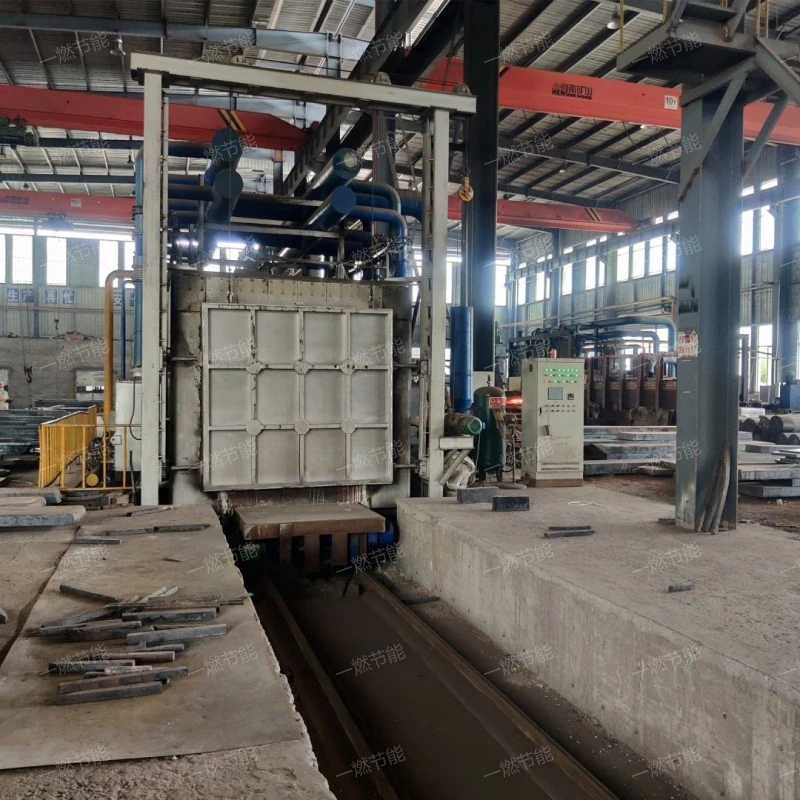

Square Well Heat Treatment Furnace

3、Square Well Heat Treatment Furnace video live broadcast

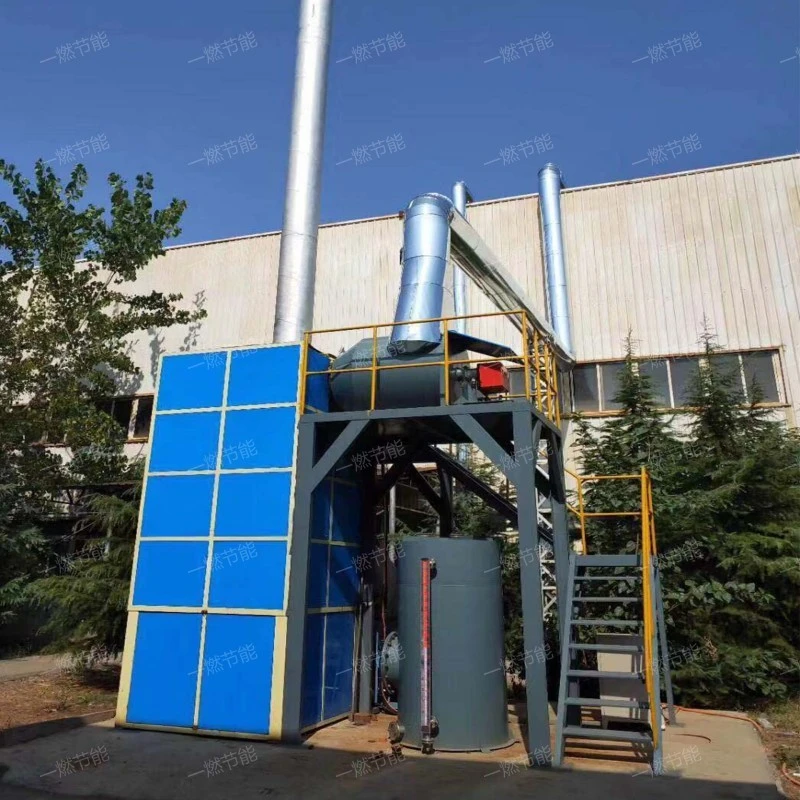

On-site aerial photography of Square Well Heat Treatment Furnace。

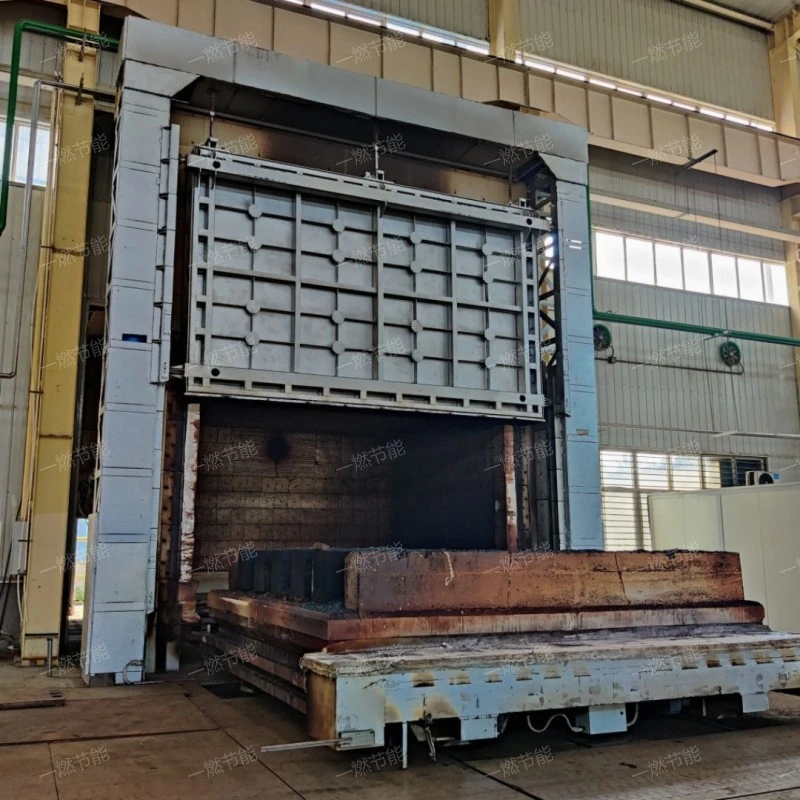

Square Well Heat Treatment Furnace

As you can see from the live video.，One-combustion energy saving multifunctional, with functions such as quench, Casting heating, Forging heating, hardening and tempering and heat treatment。

4、Square Well Heat Treatment Furnace HD picture

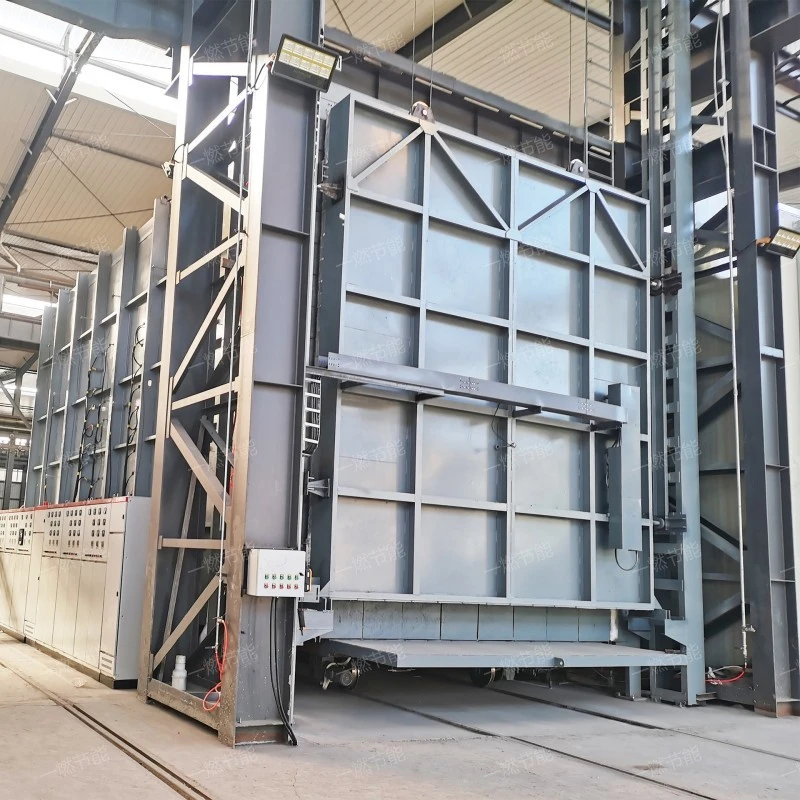

Square Well Heat Treatment Furnace HD real shot, showing the product style.。

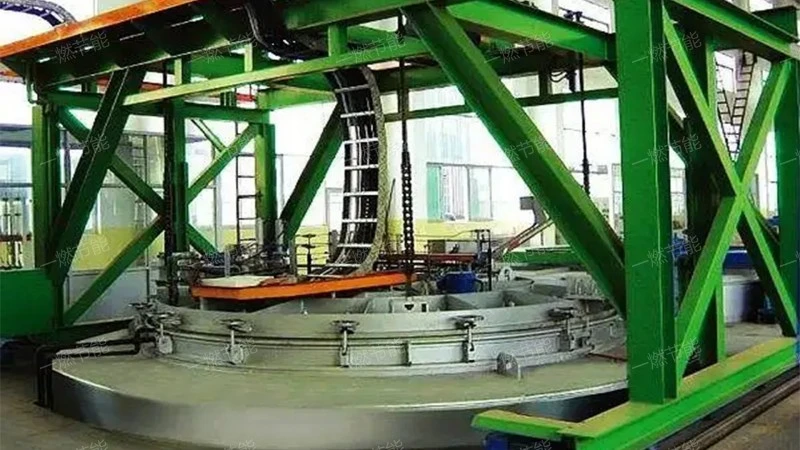

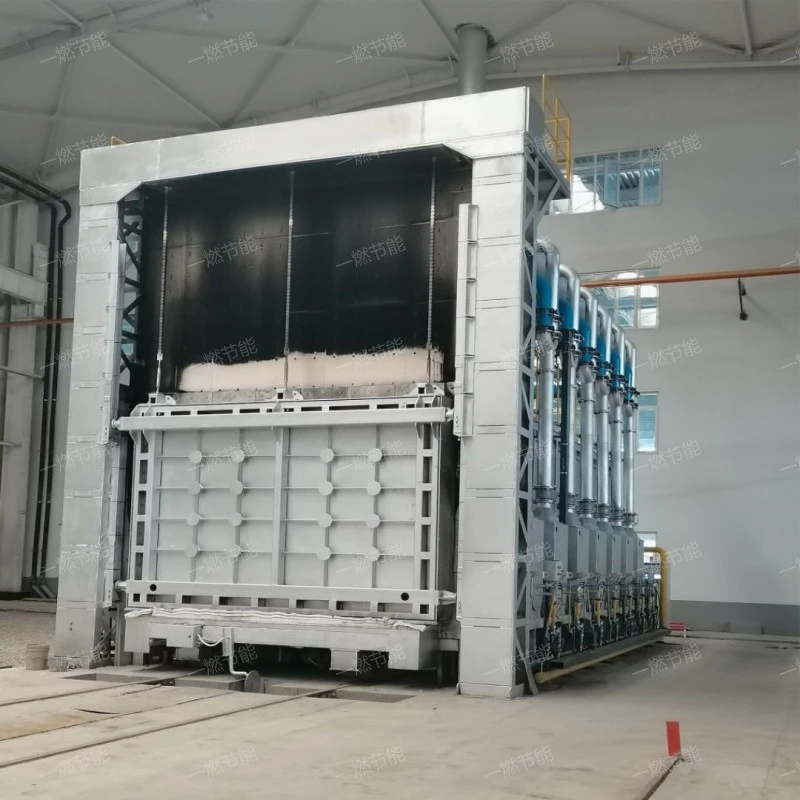

Square Well Heat Treatment Furnace

Note: All the pictures in this article were taken by One-combustion energy saving manufacturer.。

5、Square Well Heat Treatment Furnace structure composition

The Square Well Heat Treatment Furnace structure is introduced as follows:

1. convection chamber

The material is heated by convection heat transfer of high temperature flue gas discharged from the radiation chamber. Flue gas washes the tube wall of the furnace tube at a high speed to carry out effective convection heat transfer, and its heat load accounts for about 20%-30% of the whole furnace. The convection chamber is generally arranged above the radiation chamber, and some are placed on the ground alone. In order to improve the heat transfer effect, nail head tubes or finned tubes are often used in furnace tubes.

2. Waste heat recovery system

Used to recover the exhaust heat of the heating furnace. There are two kinds of recovery methods, one is to recover by preheating combustion air, so that the recovered heat can return to the furnace again; The other is to use another recovery system to recover heat. The former is called air preheating mode, and the latter is usually called waste heat boiler mode.

3. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

4. Radiation chamber

The heat load of the main place for Square Well Heat Treatment Furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

5. furnace chamber

A space for holding metallic materials for heating.

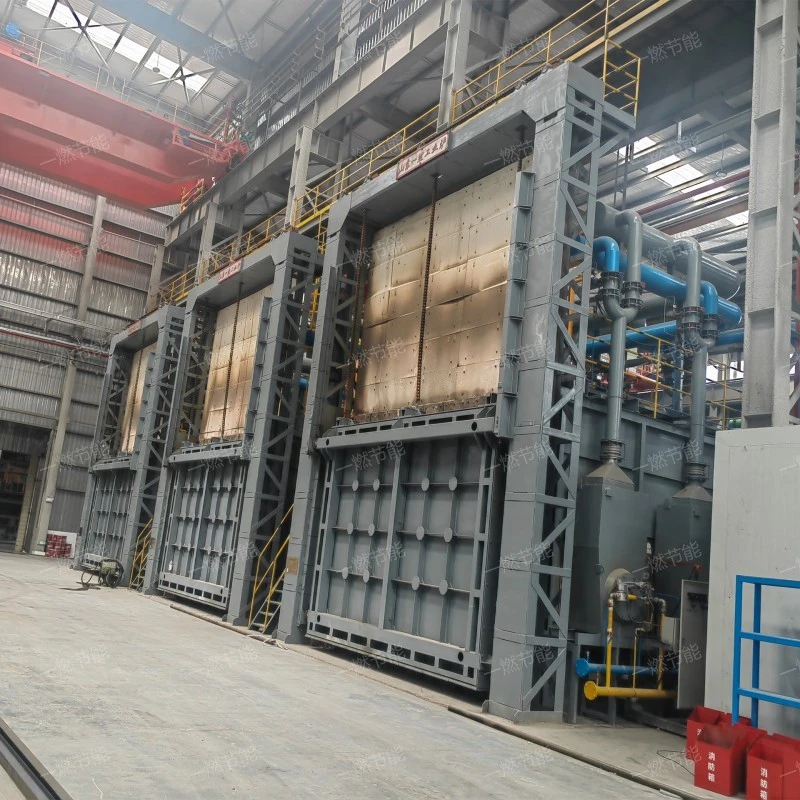

Square Well Heat Treatment Furnace

6、Brief introduction of Square Well Heat Treatment Furnace

Square Well Heat Treatment FurnaceIt is an efficient, energy-saving and environment-friendly metal heating device.，widely used inbuilding materials,electron,chemical industry,heat treatment,metallurgy and other industries。

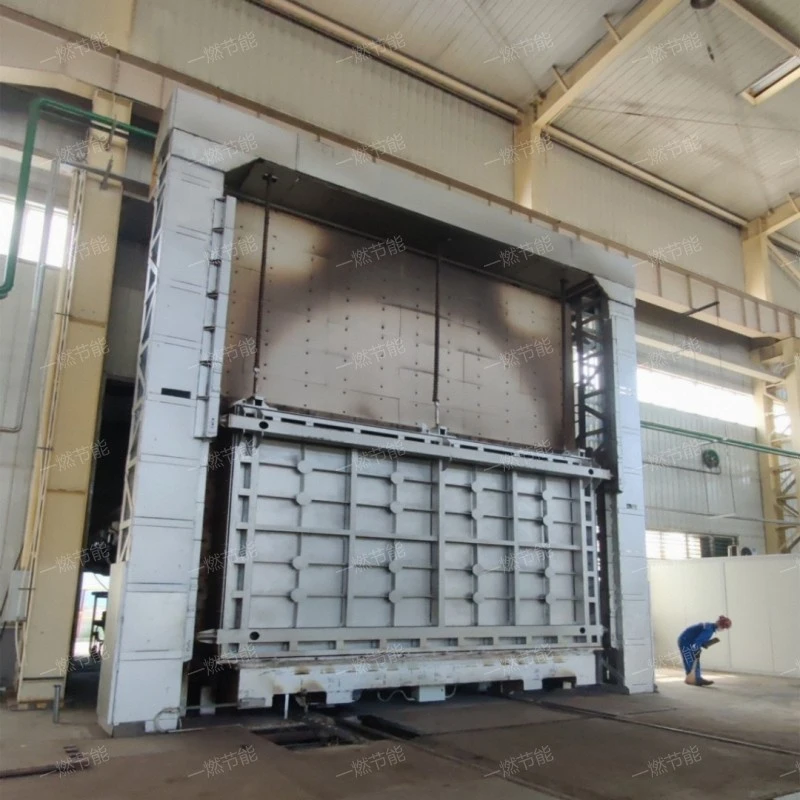

Square Well Heat Treatment Furnace

Square Well Heat Treatment FurnaceWidely used in Metal melting and casting, Metal melting and casting, Metal tempering, Metal heat treatment and Metal forging heating，is a Square Well Heat Treatment Furnace。
