Introduction to Isothermal well type heat treatment furnace, introduction to Forging furnace function advantages and characteristics

Isothermal well type heat treatment furnaceIt is a kind of equipment that uses natural gas as fuel to heat metal materials and make them reach forging temperature.，it mainly includes Radiation chamber, combustor, furnace chamber, recovery of waste heat and ventilation system，productThe structural design is simple, novel and special.。

1、Brief introduction of Isothermal well type heat treatment furnace

Isothermal well type heat treatment furnaceIt is a forging heating device using gas as fuel.，is a common Isothermal well type heat treatment furnace，Suitable for forging and heating of various metal materials, including steel, aluminum and copper. At the same time, it can also be used in metal heat treatment, tempering and other technological processes.、Efficient combustion and waste heat recovery system can significantly reduce energy consumption, thus reducing operating costs.、It can improve the plasticity and fluidity of metal materials, reduce the difficulty and cost of forging, and improve product quality and production efficiency.、Adopting advanced combustion technology and materials, it has a long service life and low maintenance cost.、It has the advantages of high heating efficiency, high energy utilization, accurate temperature control, good environmental protection performance, simple operation and strong adaptability.。

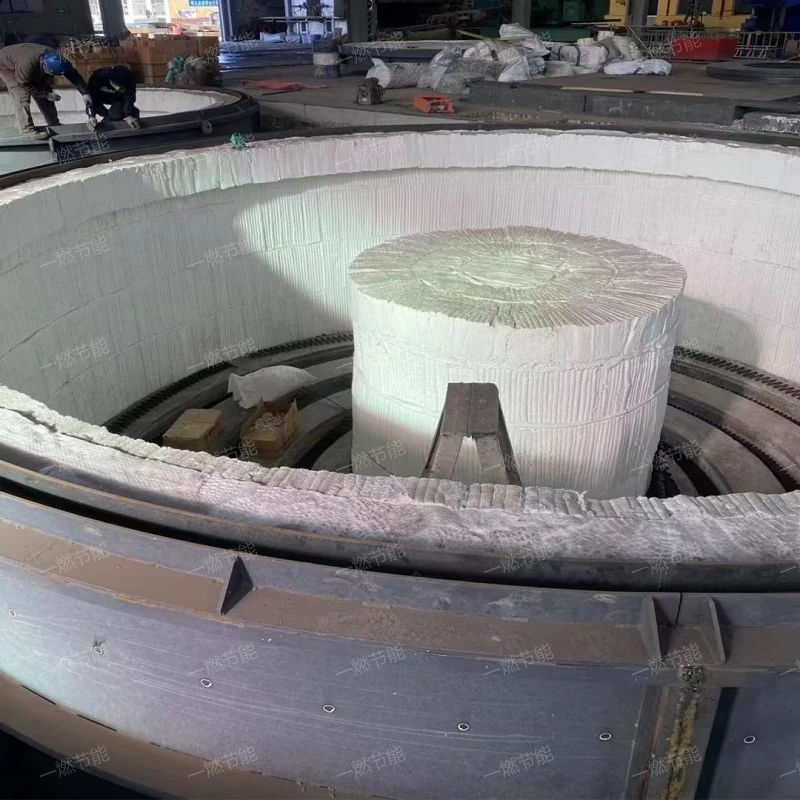

Isothermal well type heat treatment furnace

2、Isothermal well type heat treatment furnace structure composition

The Isothermal well type heat treatment furnace structure is introduced as follows:

1. Radiation chamber

The heat load of the main place for Isothermal well type heat treatment furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

2. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

3. furnace chamber

A space for holding metallic materials for heating.

4. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

5. convection chamber

The material is heated by convection heat transfer of high temperature flue gas discharged from the radiation chamber. Flue gas washes the tube wall of the furnace tube at a high speed to carry out effective convection heat transfer, and its heat load accounts for about 20%-30% of the whole furnace. The convection chamber is generally arranged above the radiation chamber, and some are placed on the ground alone. In order to improve the heat transfer effect, nail head tubes or finned tubes are often used in furnace tubes.

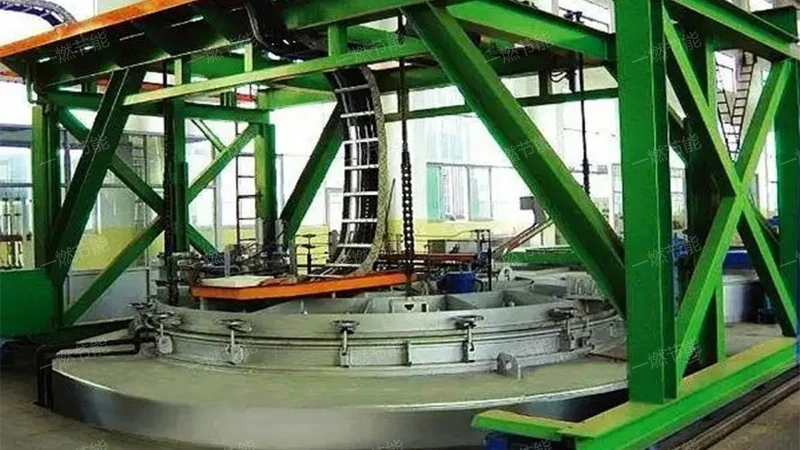

Isothermal well type heat treatment furnace

3、Isothermal well type heat treatment furnace use

The purpose of Isothermal well type heat treatment furnace is introduced as follows:

1. Metal tempering

By properly heating and cooling the metal material, the Isothermal well type heat treatment furnace can realize the quenching and tempering treatment of the metal. This is helpful to adjust the hardness and toughness of metal to meet the needs of different workpieces.

2. Metal heat treatment

In addition to forging heating, Isothermal well type heat treatment furnaces can also be used for metal heat treatment processes, such as annealing and tempering. These processes can improve the microstructure and properties of metal materials, and improve their service life and mechanical properties.

3. Energy conservation and environmental protection

The Isothermal well type heat treatment furnace uses clean energy as fuel, which has lower emissions and higher energy efficiency than traditional coal-fired or oil-fired stoves. This is helpful to reduce environmental pollution and realize green production.

4. Metal melting and casting

Although it is mainly used for forging heating, some types of Isothermal well type heat treatment furnaces can also be used in metal melting and casting processes. This is especially suitable for melting and casting of small or special alloys.

5. Metal forging heating

The Isothermal well type heat treatment furnace can heat the metal material to the temperature required for forging, improve its plasticity and fluidity, and thus facilitate forging. This is very important for the forging of various metal materials.

Isothermal well type heat treatment furnace

4、Isothermal well type heat treatment furnace performance advantage

The advantages of Isothermal well type heat treatment furnace are as follows:

1. clean energy

Natural gas, as a clean energy source, produces less waste gas and dust after combustion, which has little pollution to the environment. This will help reduce industrial emissions and improve the atmospheric environment.

2. easy to operate

The operation interface of the Isothermal well type heat treatment furnace is friendly and easy for operators to use. At the same time, the equipment also has the function of fault diagnosis and alarm, which can find and deal with abnormal situations in time.

3. Uniform heating

The Isothermal well type heat treatment furnace adopts regenerative combustion system or advanced burner design, which can realize uniform distribution of temperature in the furnace, ensure uniform heating of metal materials and improve product quality.

4. easy to operate

The operation interface of the Isothermal well type heat treatment furnace is friendly and easy for operators to use. At the same time, the equipment also has the function of fault diagnosis and alarm, which can find and deal with abnormal situations in time.

5. Uniform heating

The Isothermal well type heat treatment furnace adopts regenerative combustion system or advanced burner design, which can realize uniform distribution of temperature in the furnace, ensure uniform heating of metal materials and improve product quality.

Isothermal well type heat treatment furnace

5、Isothermal well type heat treatment furnace characteristics

The Isothermal well type heat treatment furnace features are as follows:

1. Strong adaptability

The Isothermal well type heat treatment furnace is suitable for forging and heating of various metal materials and has a wide range of applications.

2. Stable and reliable

The Isothermal well type heat treatment furnace has a stable combustion system and temperature control system, which can ensure the uniformity and stability of the temperature in the furnace, thus improving the quality and production efficiency of forged products.

3. Efficient heating

The Isothermal well type heat treatment furnace can heat the metal to the required forging temperature in a very short time, reducing the loss caused by the oxidation of the metal.

4. Easy to maintain

The structural design of the Isothermal well type heat treatment furnace is reasonable and easy to maintain, which reduces the operating cost and failure rate of the equipment.

5. Easy to control

By adjusting the burner and ventilation system, the temperature and atmosphere in the furnace can be accurately controlled to meet the heating requirements of different metal materials.

Isothermal well type heat treatment furnace

Isothermal well type heat treatment furnaceIt has a wide range of uses, and is often used inMetal tempering,Metal melting and casting,Improve production efficiency,Metal tempering,Metal melting and casting and so on，It is an important heating equipment before metal forging. It uses natural gas as fuel to heat metal materials through high-temperature flame and smoke generated by combustion to meet the requirements of forging process.。
