What is a Large scale heat treatment resistance furnace? Introduction to the principle of Trolley resistance heating furnace structure

Large scale heat treatment resistance furnaceis an industrial furnace that uses electric current to generate heat energy through resistive materials, thus heating workpieces or materials.，customizable。

1、Brief introduction of Large scale heat treatment resistance furnace

Large scale heat treatment resistance furnaceis an industrial equipment that uses electric current to generate heat through a resistor to heat materials.，the product looks atmospheric.。

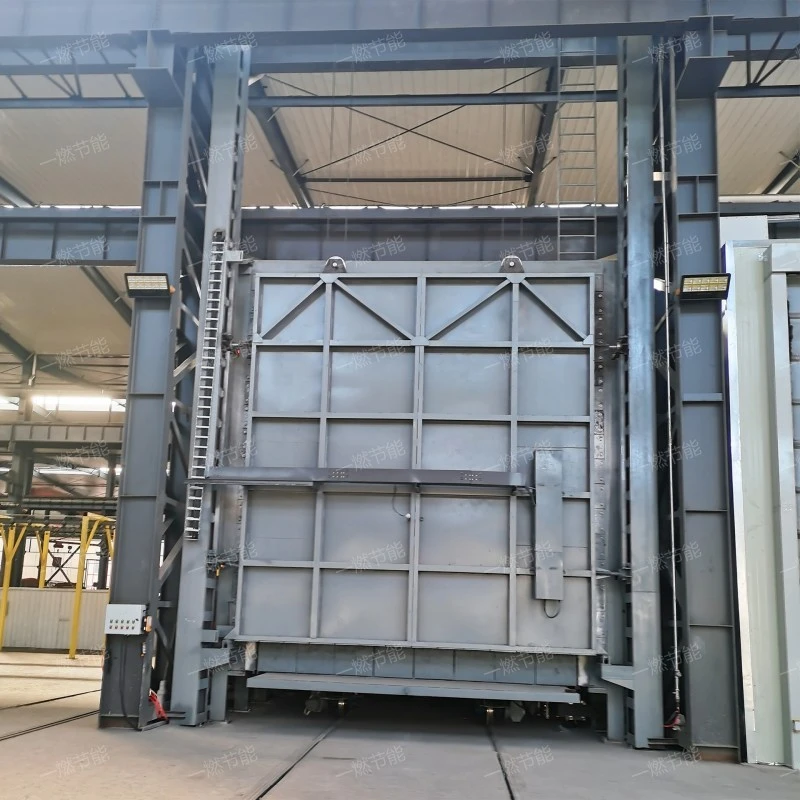

Large scale heat treatment resistance furnace

2、Functional advantages of Large scale heat treatment resistance furnace

Large scale heat treatment resistance furnaces have the following advantages.

1. High energy utilization rate

When the Large scale heat treatment resistance furnace works, there is no smoke heat loss of the fuel furnace, so the energy utilization rate is higher, which is helpful to save energy and reduce production costs.

2. Strong customization

The Large scale heat treatment resistance furnace can be customized according to the actual needs of users, such as heating power, furnace size, temperature control accuracy, etc., to meet the requirements of specific processes.

3. rapid heating

The Large scale heat treatment resistance furnace can quickly raise the temperature to the set temperature, shorten the heating time and improve the production efficiency. In particular, direct heating, current directly through the material, heating faster.

4. Pollution-free discharge

The Large scale heat treatment resistance furnace does not produce pollutants such as smoke, waste gas, etc. in the working process, which meets the requirements of environmental protection and helps to protect the production environment.

5. easy to operate

The operation of the Large scale heat treatment resistance furnace is relatively simple, and it is easy to realize automatic control, which is helpful to improve production efficiency.

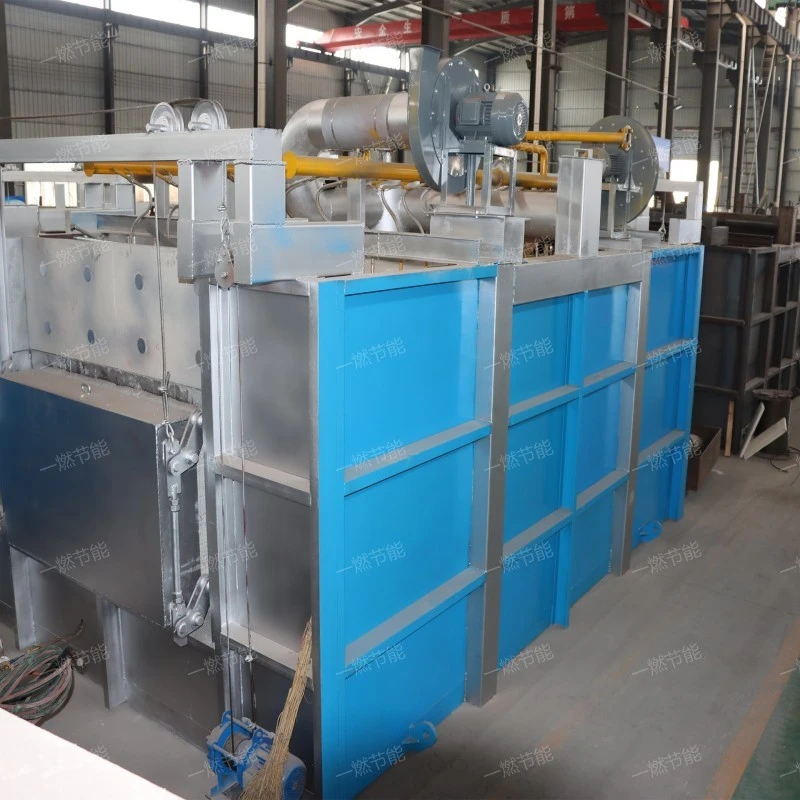

Large scale heat treatment resistance furnace

3、Large scale heat treatment resistance furnace application

Large scale heat treatment resistance furnaces have the following purposes.

1. powder metallurgy

Used for sintering and heat treatment of powder.

2. New material development

Used for synthesis and heat treatment of special materials and new materials.

3. Metal melting and casting

Used for melting low melting point metals and alloys.

4. Ceramic and glass industries

Used for baking and annealing of ceramics and glass.

5. Metal heat treatment

Such as quenching, normalizing, annealing, tempering, etc.

Large scale heat treatment resistance furnace

4、Structural characteristics of Large scale heat treatment resistance furnace

The Large scale heat treatment resistance furnace has the following structure

1. grate

Used to place the workpiece or material to be heated, which is convenient for operators to take and put.

2. furnace shell

The furnace shell is usually made of steel plate for protection.

3. thermal insulation (material)

Thermal insulation materials are used to reduce heat loss and keep the temperature in the furnace stable. Commonly used thermal insulation materials include ceramic fibers, refractory fibers, etc. These materials have the characteristics of [commodity characteristics].

4. Temperature control system

The temperature control system is used to accurately control the temperature in the furnace to meet different process requirements.

5. heating element

The heating element is the core component of the Large scale heat treatment resistance furnace, which is responsible for converting electric energy into heat energy. Common heating elements include resistance wires, resistance bands and electric heating tubes. According to the temperature requirement and heating speed in the furnace, different types of heating elements can be selected.

Large scale heat treatment resistance furnace

5、Large scale heat treatment resistance furnace video live broadcast

One-combustion energy saving provides customers with on-site high-definition video, fully demonstrates the advantages of on-site productt operation, and helps customers to deeply understand the Large scale heat treatment resistance furnace production process and production site, and gain favorable comments and recognition from customers.。

Large scale heat treatment resistance furnace

As you can see from the live video.，Shandong yiran energy-saving environment protection co., ltd it has the functions of heat treatment, quench, temper, hardening and tempering and normalizing。

6、One-combustion energy saving company discount

Large scale heat treatment resistance furnace is a new type of Trolley resistance heating furnace introduced by One-combustion energy saving manufacturer, which has a wide range of applications, complete structural design and high working efficiency. It is an ideal equipment for glass and other industries. Now consult One-combustion energy savingproduction-manufacturing的Large scale heat treatment resistance furnace, you can enjoy the discount, and there are many activities for you, such as full reduction and full reduction。

One-combustion energy saving

Large scale heat treatment resistance furnacefeatures include Environmental protection and energy saving, High thermal efficiency, energy-efficient, Low maintenance cost and Environmental protection and safety，the main structure includes furnace chamber, heating element, Temperature control system, thermal insulation (material), fire door and so on，This productThe overall structural design is relatively simple and compact.。
